Pressure Control Equipment Annular Blowout preventer Annular Blowout Preventers

Annular Blowout Preventers

  • PRICE-
  • CURRENCYUSD
  • BRAND
  • Product Code
  • Bore(inches)
  • Working pressure (psi)
  • Rubber core type
  • Connected type
  • ABOP073000FH
  • 7 1/16
  • 5000
  • Spherical rubber core
  • Bolted-cover
  • ABOP73000FH
  • 7 1/16
  • 3000
  • Spherical rubber core
  • Bolted-cover
  • ABOP093000FH
  • 9
  • 3000
  • spherical rubber core
  • Bolted-cover
  • ABOP113000FH
  • 11
  • 3000
  • Spherical rubber core
  • Bolted-cover
  • ABOP212000FH
  • 21 1/4
  • 2000
  • Spherical rubber core
  • Bolted-cover
  • ABOP203000FH
  • 20 3/4
  • 3000
  • Spherical rubber core
  • Bolted-cover
  • ABOP1310000FH
  • 13 5/8
  • 10000
  • Spherical rubber core
  • Bolted-cover
  • ABOP135000FH
  • 13 5/8
  • 5000
  • Spherical rubber core
  • Bolted-cover
  • ABOP133000FH
  • 13 5/8
  • 3000
  • Spherical rubber core
  • Bolted-cover
  • ABOP1110000FH
  • 11
  • 10000
  • Spherical rubber core
  • Bolted-cover
  • ABOP115000FH
  • 11
  • 5000
  • Spherical rubber core
  • Bolted-cover
  • ABOP095000FH
  • 9
  • 5000
  • Spherical rubber core
  • Bolted-cover
  • ABOP212000FHZ
  • 21 1/4
  • 2000
  • Taper rubber core
  • Latched-head
  • ABOP073000FHZ
  • 7 1/16
  • 3000
  • Taper rubber core
  • Latched-head
  • ABOP093000FHZ
  • 9
  • 3000
  • Taper rubber core
  • Latched-head
  • ABOP095000FHZ
  • 9
  • 5000
  • Taper rubber core
  • Latched-head
  • ABOP115000FHZ
  • 11
  • 5000
  • Taper rubber core
  • Latched-head
  • ABOP113000FHZ
  • 11
  • 3000
  • Taper rubber core
  • Latched-head
  • ABOP133000FHZ
  • 13 5/8
  • 3000
  • Taper rubber core
  • Latched-head
  • ABOP135000FHZ
  • 13 5/8
  • 5000
  • Taper rubber core
  • Latched-head
  • ABOP1310000FHZ
  • 13 5/8
  • 10000
  • Taper rubber core
  • Latched-head
  • ABOP203000FHZ
  • 20 3/4
  • 3000
  • Taper rubber core
  • Latched-head
  • Number of product packages
  • Shipping cycle
  • Price
  • Quantity
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • 1 set
  • 70
  • -
  • - +
    piece
  • PRODUCT DESCRIPTION
TECHNICAL PARAMETERS
Bore: 7 1/16,9 , 11, 13 5/8, 20-3/4, 21-1/4
Work pressure: 2000,3000,5000,10000psi
IMPLEMENTATION OF STANDARDS
  • API 16A
PRODUCT DESCRIPTION

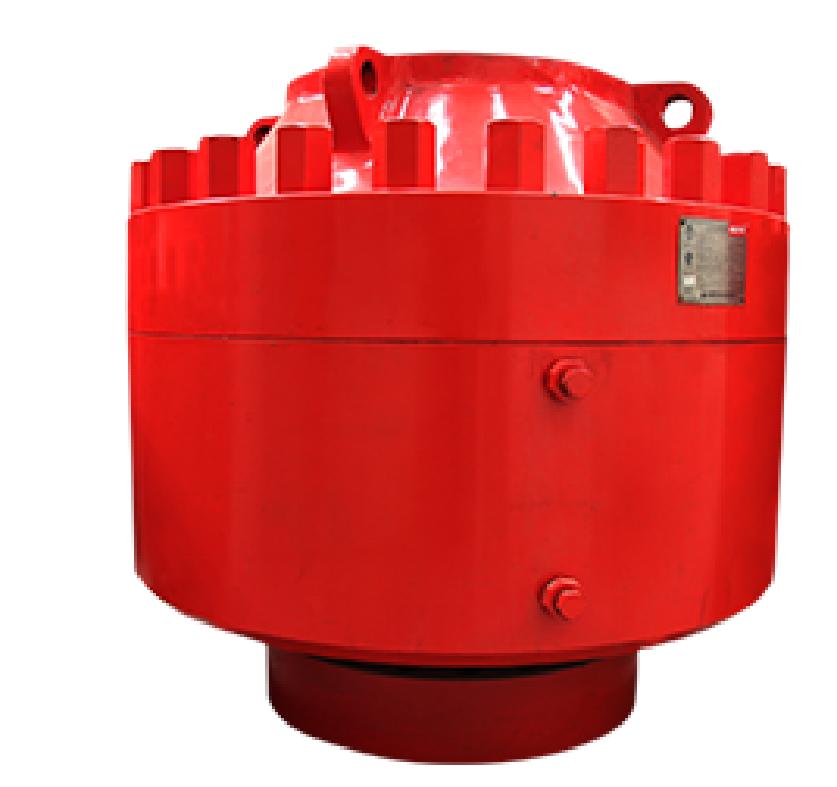

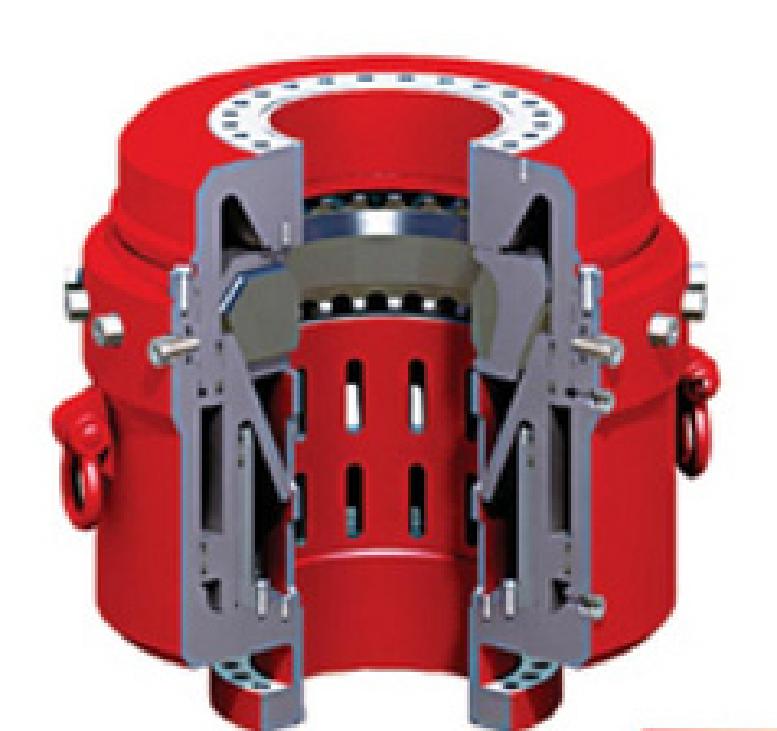

API 16A Annular Blowout Preventers (Annular BOP) & Replacement Trims

100% Interchangeable with Hydril GK/GX & Cameron DL Profiles | API 16A PSL 3G & PR2 Qualified | Proven Operations with SABA Drilling Services, and Serinco Drilling S.A.

Executive Overview

Designed as the primary well control barrier for high-pressure drilling, workover, and completion operations, our API Spec 16A Annular Blowout Preventers (Annular BOPs) deliver dependable annular sealing around any size or shape of drill pipe, casing, tubing, or wireline—as well as full closure (CSO) on open holes.

Engineered to match original dimensional and metallurgical specifications, our Annular BOP assemblies, replacement packing elements, and seal kits provide 100% interchangeability with Hydril (GK / GX Series) and Cameron (DL Series) designs. Operators can perform fast drop-in component replacements or complete stack installations without modifying hydraulic control lines or BOP stack framing.

Trusted by leading international drilling contractors including TPIC, SABA Drilling Services, and Serinco Drilling S.A., our Annular BOP systems are field-proven across active drilling basins in Colombia, Turkey, North America, Central Asia, and the Middle East. Supported by rigorous dynamic stripping cycle validation, an extended operating temperature envelope (-46°C to +121°C), zero quality claims, and fast global delivery, we ensure maximum wellhead pressure containment for international drilling fleets.

Technical Performance & Engineering Advantages

1. 100% Hydril & Cameron OEM Profile Interchangeability

  • Seamless Field Maintenance: Internal components, forged pistons, top lids, and elastomeric seals are 100% dimensionally interchangeable with Hydril GK, Hydril GX, and Cameron DL style Annular BOPs.

  • Direct Drop-In Packing Elements: Replacement packing elements and seals drop directly into original OEM BOP housing bowls, allowing drilling contractors to standardize inventory across global operations while eliminating OEM price premiums.

2. Validated Dynamic Stripping Endurance & Full Seal Recovery

  • Field-Proven Dynamic Stripping: Rigorously tested for dynamic stripping cycles, allowing drill pipe tool joints to pass under continuous wellhead pressure without premature packing element tearing or pressure loss.

  • Full Closure & Elastic Memory: Engineered with high-resilience elastomer formulations (NBR, HNBR, and Natural Rubber) that maintain elasticity and return to full open bore after repeated full-closure operations.

3. Severe Environment & Extreme Temperature Validation

  • API 16A PSL 3G & PR2 Certified: Verified through PR2 dynamic thermal and pressure cycling tests, as well as PSL 3G low- and high-pressure gas testing to ensure zero fugitive emissions under volatile gas conditions.

  • -46°C to +121°C Temperature Envelope: Rated for API 16A Temperature Classes (-46°C to +121°C / -50°F to +250°F), ensuring structural integrity and sealing flexibility across arctic wells, high-temperature shale plays, and HPHT offshore rigs.

  • NACE MR0175 / ISO 15156 Compliance: Forged body cavities and critical seal paths feature optional Inconel 625 (UNS N06625) CRA cladding to resist $H_2S$ sulfide stress cracking and $CO_2$ corrosion.

4. Complete Field Maintenance & Support Package

  • Zero-Delay Field Service: Every complete Annular BOP unit or major seal package ships with complementary handling equipment:

    • Running & Change-out Tools for Packing Elements: Specialized tools to simplify element extraction and insertion on the rig floor.

    • Field Seal Repair Kits: Complete secondary seal packages, bonnet O-rings, and hydraulic operating chamber seal sets for first-time-right overhauls.

Technical Specifications

ParameterSpecification & Standard Options
Design StandardAPI Spec 16A (Latest Edition), NACE MR0175 / ISO 15156
Bore Sizes & Pressures7-1/16″ to 21-1/4″ (2,000 PSI to 15,000 PSI Working Pressure)
Interchangeability100% Compatible with Hydril GK/GX & Cameron DL Designs
Quality & CertificationAPI 16A PSL 3 / PSL 3G, PR2 Qualified
Temperature Rating-46°C to +121°C (-50°F to +250°F)
Stripping PerformanceTested for Dynamic Stripping Cycles under Continuous Pressure
Packing Element OptionsNatural Rubber (NR), Nitrile (NBR), Hydrogenated Nitrile (HNBR)
Field Maintenance ToolsPacking Element Running & Change-out Tools, Field Repair Seal Kits


Global Supply Chain & Field Reliability

  • Proven International Client Base: Field-tested and regularly deployed by major drilling contractors including TPIC (Turkish Petroleum International Company), SABA Drilling Services, and Serinco Drilling S.A.

  • Global Export Footprint: Established logistics routes with active operational footprints across Colombia, Turkey, the United States, Central Asia, and the Middle East.

  • Fast-Track Delivery: High-demand packing elements, seal kits, and pre-machined forged shells kept in ready inventory for rapid dispatch to prevent rig Non-Productive Time (NPT).

  • Zero Quality Claims Record: 100% factory hydro-tested, drift-tested, and low-/high-pressure gas-tested prior to shipment.

Frequently Asked Questions

Q1: Are your Annular BOP packing elements 100% interchangeable with Hydril and Cameron models?

Answer: Yes. Our replacement packing elements, rubber seals, and internal components are engineered with 100% dimensional and functional interchangeability for Hydril GK, Hydril GX, and Cameron DL style Annular BOPs. They drop directly into original OEM housing bowls without field modification.

Q2: Which international drilling contractors currently use your Annular BOPs and spares?

Answer: Our Annular BOP units and replacement spares are trusted and actively deployed by prominent international contractors including TPIC, SABA Drilling Services, and Serinco Drilling S.A. across active drilling fields in Colombia, Turkey, and worldwide.

Q3: How do your Annular BOPs perform during dynamic stripping operations?

Answer: Our Annular BOPs are tested for dynamic stripping cycles under continuous wellhead pressure. The high-resilience elastomer formulations and tapered piston geometries allow drill pipe tool joints to pass smoothly while maintaining a continuous hydraulic seal.

Q4: What temperature ratings and certifications apply to these Annular BOPs?

Answer: Certified to API 16A PSL 3G and PR2, our Annular BOPs are qualified for extreme operating temperatures ranging from -46°C to +121°C (-50°F to +250°F), making them suitable for extreme cold-weather operations and HPHT high-temperature environments.

Q5: What handling tools and repair kits ship with the Annular BOP orders?

Answer: To ensure safe and efficient maintenance on the rig floor, we supply dedicated Running & Change-out Tools for Packing Elements alongside complete Field Seal Repair Kits with complete component or major spare parts orders.

Reviewing the step-by-step packing element replacement and seal inspection procedures helps rig crews execute safe, efficient overhauls on Annular BOPs.



Annular BOP Sizes and Models

Working   pressure (psi)

Bore(inches)

7  1/16

9

11

13 5/8

16 3/4

18 3/4

20 3/4

21 1/4

10000









5000









3000









2000










Annular BOP specifications

Bore(inches)

7  1/16

9

11

13   5/8

20-3/4

21-1/4

Working   pressure(psi)

3000

5000

3000

5000

3000

5000

10000

3000

5000

10000

3000

2000

Operating   pressure(psi)

1500

1500

1500

1500

1500

1500

1500

1500

1500

1500

1500

1500

Gallons   to close

4.92

4.57

7.23

11.05

11

18.67

30.58

23.5

23.58

40.16

43.4

31.1

Gallons   to open

3.43

3.21

5.03

8.72

6.78

14.95

24.67

14.67

17.41

32.64

26.9

18.9

Width(inches)

29

29

35   1/2

40

39   7/8

44 3/4

57

46   3/8

50

64 1/2

54 1/8

52 3/4

Height(inches),   Studded Top, Flanged bottom

29-1/8

30-7/8

32   1/2

36-1/2

32   7/8

41-1/2

53

40-11/16

44-15/16

58-3/4

48-7/16

52-1/2

Weight(lbs),   Studded Top, Flanged bottom

2900

3175

4775

6800

5825

9550

23000

9100

13650

32475

14600

15100

Ring   Gasket

R-45

R-46

R-49

R-50

R-53

R-54

BX-158

R-57

BX-160

BX-159

R-74

R-73
