Handing Tools Elevator 180 Center Latch Elevator Series

180 Center Latch Elevator Series

  • PRICE-
  • CURRENCYUSD
  • BRAND
  • Number of product packages
  • Shipping cycle
  • Price
  • Quantity
  • PRODUCT DESCRIPTION
TECHNICAL PARAMETERS
Capacity:100 to 500 ton
Pipe sizes: 23/8" to 65/8" OD
IMPLEMENTATION OF STANDARDS
  • API8C
PRODUCT DESCRIPTION

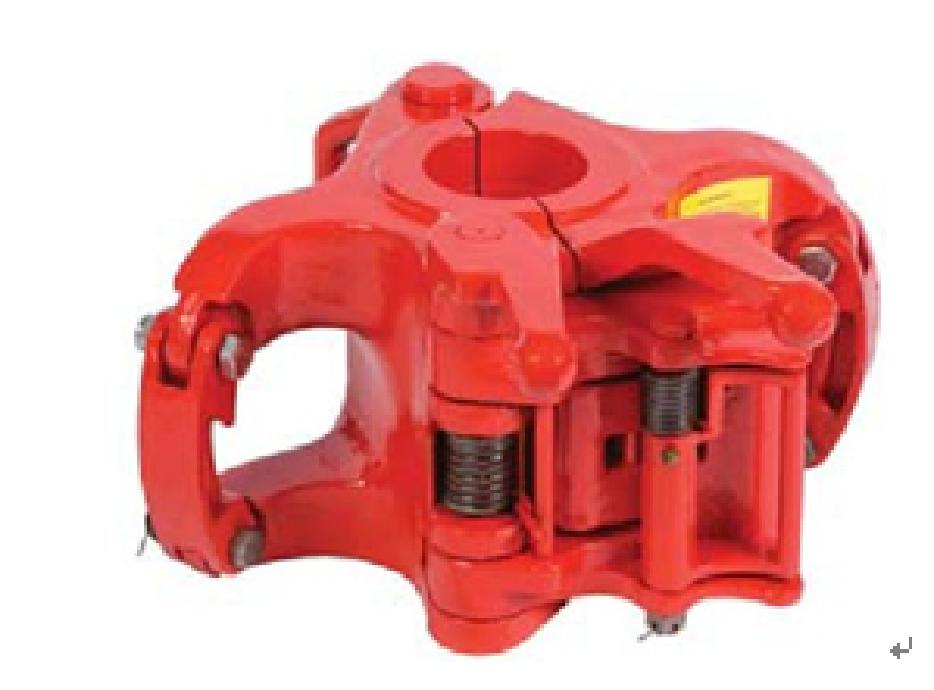

API 8C 180° Center-Latch Elevator Series

 API Spec 8C PSL 2 & SR2 Certified (-40°C Tested) | Load Rated 100 to 500 Tons | Fast-Track 35-Day Delivery

Overview

Engineered for ultra-reliable hoisting of drill pipe, heavy-weight drill pipe (HWDP), and 90° or 18° shoulder tubulars during high-stress drilling operations, our 180° Center-Latch Elevator Series delivers uncompromised structural balance and dynamic safety.

Manufactured from high-purity, fully heat-treated alloy steel,  Rig crews can swap hinge pins, latch locks, springs, or link blocks on location without modifying existing top drives or link arms.

Fully certified to API Spec 8C PSL 2 and SR2, our elevator portfolio covers capacities from 100 tons to 500 tons for tubular outer diameters ranging from 2-3/8″ to 6-5/8″ OD. Featuring a two-handed double-safety latch lock mechanism, verified -40°C arctic-grade Charpy V-Notch impact toughness (≥42), and a guaranteed 35-day fast-track delivery, we serve land and offshore drilling fleets across Central Asia, the Middle East, North America, and global basins.

Technical Performance & Engineering Advantages

1. Dual-Handed Safety Latch Lock (Zero Accidental Openings)

  • Two-Handed Security Operation: Engineered with a center-latch closure coupled with an advanced double safety latch lock (Safety Latch Lock). Operators must manually disengage the primary safety lock pin using both hands to release the latch.

  • Dropped Object Prevention: Completely prevents unintended opening caused by single-hand misoperation, severe drill string whipping, top-drive dynamic vibration, or accidental wellsite collisions during rapid tripping.

2. API 8C SR2 Arctic Toughness (-40°C Impact Tested )

  • Brittle Fracture Protection: Purpose-built for extreme sub-zero field environments in Central Asia, North America, and northern drilling basins (-40°C / -40°F).

  • Verified Charpy V-Notch Value: Heat-treated alloy steel bodies achieve a verified Charpy V-Notch impact energy absorption value ≥42J (API Spec 8C SR2 requirement) at -40°C, maintaining dynamic elasticity and structural integrity under maximum static and impact loads.

Technical Specifications

Type

Cap

Size

Frame

Link Size

Weight

Min.

Max.


tons

inches

mm


inches

mm

inches

mm

lbs

kg

MG

100

2 3/8" -   5"

60-127

30157Y

1 3/4"

44

2 3/4"

70

210-233

95-106

RGG

150

2 3/8" - 3   1/2"

60-89

200680Y

1 3/4"

44

2 3/4"

70

304

138

MGG

250

3 1/2" – 5   1/2"

89-140

35005Y

2 1/4"

57

3 1/2"

89

546-608

248-276

GG

350

4" – 5   1/2"

102-140

31068Y

2 1/4"

57

3 1/2"

89

672-693

305-314

HGG

500

4" – 6   5/8"

102-169

70013Y

2 3/4"

70

4 3/4"

121

1029

467

Complete Quality Assurance & Documentation Package

Every 180° center-latch elevator ships with a full, field-ready compliance file to satisfy third-party operator audits and international rig inspections:

  • API Spec 8C PSL 2 Certification Report: Official monogrammed quality compliance per API 8C standards.

  • 1.5x Rated Load Test Certificate: Verified pull-test results proving structural integrity under 150% rated tonnage.

  • Full MTR (Material Test Reports): Complete chemical composition and mechanical property mill test traceabilities per EN 10204 3.1.

  • UT & MT Non-Destructive Testing Reports: Ultrasonic (UT) and Magnetic Particle (MT) examination records verifying zero internal or surface defects.

Global Supply Chain & Operational Reliability

  • Fast-Track 35-Day Guaranteed Delivery: Maintained raw forging inventories and dedicated CNC production lines ensure complete elevator assemblies and replacement spare packages dispatch within 35 days.

  • Global Export Footprint: Proven field performance across active land and offshore drilling operations in Central Asia, the Middle East, North America, and South America.

  • Export-Grade Logistics: Shipped in heavy-duty wooden crates with internal VCI anti-corrosion barrier vacuum sealing to protect ground pin surfaces and precision latch springs during ocean or overland transit.

Frequently Asked Questions

Q1: How does the dual-handed safety latch lock mechanism prevent accidental elevator opening?

Answer: Our 180° center-latch series incorporates a two-handed double-safety latch lock mechanism. Rig personnel must manually pull the safety lock pin using both hands to release the latch handle. This feature completely eliminates accidental single-hand misoperation or unexpected door opening caused by severe rig-floor vibration and pipe collisions.


Q2: Can your 180° center-latch elevators operate in sub-zero climates in Central Asia and North America?

Answer: Yes. Heat-treated to API Spec 8C SR2 standards, our alloy steel elevator bodies undergo Charpy V-Notch impact testing at -40°C (-40°F), achieving an impact energy absorption value of  to prevent brittle fracture during severe arctic winter operations.


Q3: What documentation is included with each elevator order?

Answer: Every unit ships complete with an API Spec 8C PSL 2 Certification Report, 1.5x Rated Load Test Certificate, full MTRs (Material Test Reports), and UT/MT non-destructive inspection reports.


Q4: What is the delivery timeline for bulk orders ranging from 100 to 500 tons?

Answer: We guarantee a fast-track 35-day delivery timeline for standard 180° center-latch elevator assemblies (covering pipe sizes 2-3/8″ to 6-5/8″ OD) and dedicated spare parts packages destined for Central Asia, the Middle East, and worldwide ports.
