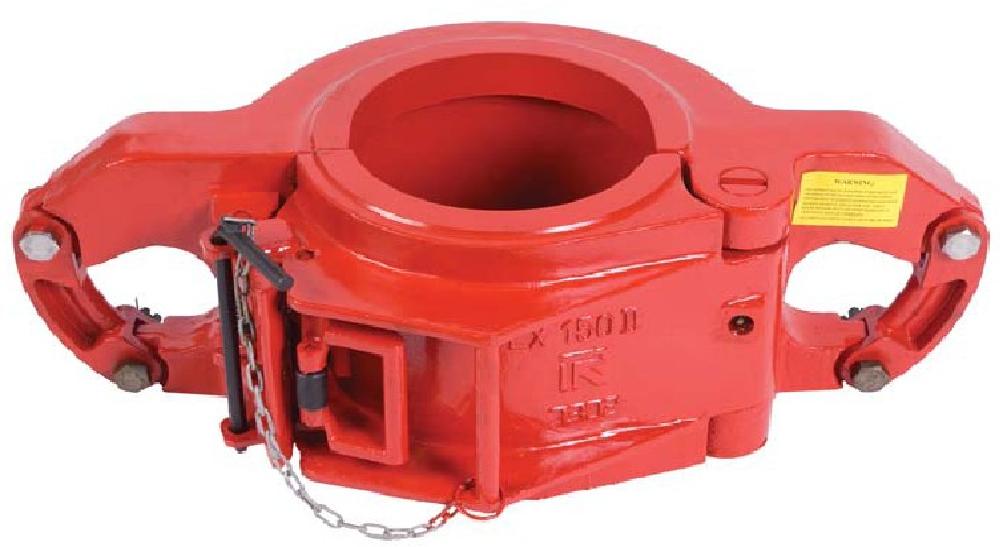

API 8C Collar Type Side-Door Elevator SLX Series

 API Spec 8C PSL 2 & SR2 Certified (-40°C Tested) | Load Rated 65 to 500 Tons | Guaranteed 35-Day Delivery

 Overview

Engineered for ultra-reliable hoisting of slick drill collars, heavy casing, and 90° square shoulder tubulars during extreme drilling and completion operations, our Collar Type Side-Door Elevator SLX Series provides maximum structural strength and complete rig-floor safety.

Manufactured from high-purity, fully heat-treated alloy steel, Rig crews and maintenance teams can replace hinge pins, latch locks, springs, or complete door assemblies directly on location without modifying existing link arms or top drive equipment.

Fully certified to API Spec 8C PSL 2 and SR2, our elevators cover a broad range of capacity ratings from 65 tons to 500 tons. Each unit features a dual-handed safety latch lock mechanism, verified -40°C arctic-grade Charpy V-Notch impact toughness (≥42), and comprehensive factory certification packages. Backed by a guaranteed 35-day fast-track delivery, we serve drilling contractors and oilfield operators across Central Asia, the Middle East, North America, and global basins.

Technical Performance & Engineering Advantages

1. Dual-Handed Safety Latch Lock (Zero Accidental Openings)

  • Two-Handed Security Operation: Features an advanced side-door closure combined with a double safety latch lock (Safety Latch Lock). Operators must manually pull the primary safety latch pin using both hands to release the door handle.

  • Dropped Object Prevention: Thoroughly eliminates accidental opening caused by single-hand misoperation, dynamic whipping, severe wellhead vibration, or pipe collisions during heavy tripping.

2. API 8C SR2 Arctic Toughness (-40°C Impact Tested ≥42)

  • Brittle Fracture Protection: Engineered specifically for cold-climate field operations in Central Asia, North America, and harsh winter basins (-40°C / -40°F).

  • Verified Charpy V-Notch Value: Heat-treated alloy steel bodies achieve a verified Charpy V-Notch impact energy value  ≥42 (API Spec 8C SR2 requirement) at -40°C, ensuring structural elasticity and fracture toughness under maximum static and shock loads.

Technical Specifications

Type

 Cap.

Size

 Frame

 Link Size

 Weight

 Min.

 Max.


 tons

 inches

 mm


 inche

mm

 inches

 mm

lbs

kg

SLX

65

1.660" - 2 7/8"

 42 -   73

 33734Y

 1   3/4"

 44.45

 21/4"

 57.15

61

28

SLX

100

2 3/8" - 2 7/8"

 60 -   73

 33693Y

 1   3/4"

 44.45

 23/4"

 69.85

77

35

SLX

100

3 1/2" - 4"

 89 -   102

 33809Y

 1   3/4"

 44.45

 23/4"

 69.85

114

58

SLX

100

4 1/2" - 5 1/2"

 114   - 140

 33854Y

 1   3/4"

 44.45

 23/4"

 69.85

145

66

SLX

150

5 1/2" - 8 5/8"

 140   - 219

 31239Y

 1   3/4"

 44.45

 31/2"

 88.9

313 - 326

142-148

SLX

150

9 5/8" - 10 3/4"

 245   - 273

 33950Y

 1   3/4"

 44.45

 31/2"

 88.9

343 - 357

156-162

SLX

150

11 3/4" - 13 3/8"

 298   - 340

 33892Y

 1   3/4"

 44.45

 31/2"

 88.9

432 - 448

196-203

SLX

150

16"

 406

 34087Y

 1   3/4"

 44.45

 31/2"

 88.9

537

244

SLX

150

18 5/8" - 20"

 473   - 508

 33632Y

 1   3/4"

 44.45

 31/2"

 88.9

665 - 705

302 - 320

SLX

250

24 1/2"

 622

 34175Y

 1  3/4"

 44.45

 31/2"

 88.9

1208

548

SLX

350

9 5/8" - 13 3/8"

244-340

29965Y

 1  3/4"

 44.45

 31/2"

 88.9

1200

544

Complete Quality Assurance & Documentation Package

Every SLX series elevator ships with a full, field-ready compliance file to satisfy third-party oil operator audits:

  • API Spec 8C PSL 2 Certification Report: Monogrammed quality compliance per API 8C standards.

  • 1.5x Rated Load Test Certificate: Verified pull-test results proving structural integrity under 150% rated tonnage.

  • Full MTR (Material Test Reports): Complete chemical composition and mechanical property mill test traceabilities per EN 10204 3.1.

  • UT & MT Non-Destructive Testing Reports: Ultrasonic (UT) and Magnetic Particle (MT) examination records verifying 0 surface and internal defects.

Global Supply Chain & Operational Reliability

  • Fast-Track 35-Day Guaranteed Delivery: Maintained raw forging inventories and dedicated CNC production lines guarantee complete elevator packages dispatch within 35 days.

  • Global Export Proven: Actively serving land and offshore drilling contractors across Central Asia, the Middle East, North America, and South America.

  • Export-Grade Logistics: Packaged in heavy-duty structural wooden crates with VCI anti-corrosion barrier vacuum sealing to protect precision latch springs and ground pin surfaces during international ocean or overland transport.

Frequently Asked Questions

Q1: How does your SLX side-door elevator prevent accidental opening during rig operations?

Answer: Our SLX series incorporates a dual-handed safety latch lock mechanism (Safety Latch Lock). Rig personnel must manually pull the safety lock pin using both hands to release the latch. This design completely eliminates accidental single-hand misoperation or door disengagement during heavy vibration and tripping.

Q2: Can your SLX elevators handle extreme sub-zero temperatures in Central Asia and North America?

Answer: Yes. Heat-treated to API Spec 8C SR2 standards, our alloy steel elevator bodies undergo Charpy V-Notch impact testing down to -40°C (-40°F), achieving an impact energy absorption value of $\ge 42\text{ J}$ to prevent brittle fracture in extreme arctic winter environments.

Q3: Are your SLX elevator components 100% interchangeable with BJ and BVM models?

Answer: Yes. All SLX series elevators are manufactured with 100% dimensional and functional interchangeability for BJ (Varco/NOV) and BVM SLX profiles. Latch pins, hinge pins, safety springs, and link blocks drop directly into original OEM bodies.

Q4: What QA and testing documentation is supplied with each SLX elevator shipment?

Answer: Every unit ships with a complete document package, including an API Spec 8C PSL 2 Certification Report, 1.5x Rated Load Test Certificate, full MTRs (Material Test Reports), and UT/MT non-destructive inspection reports.

Q5: What is your standard lead time for SLX elevator orders from 65 to 500 tons?

Answer: We guarantee a fast-track 35-day delivery timeline for all standard SLX elevator sizes (65T to 500T) and complete spare parts kits, serving global export destinations across Central Asia and the Middle East.
