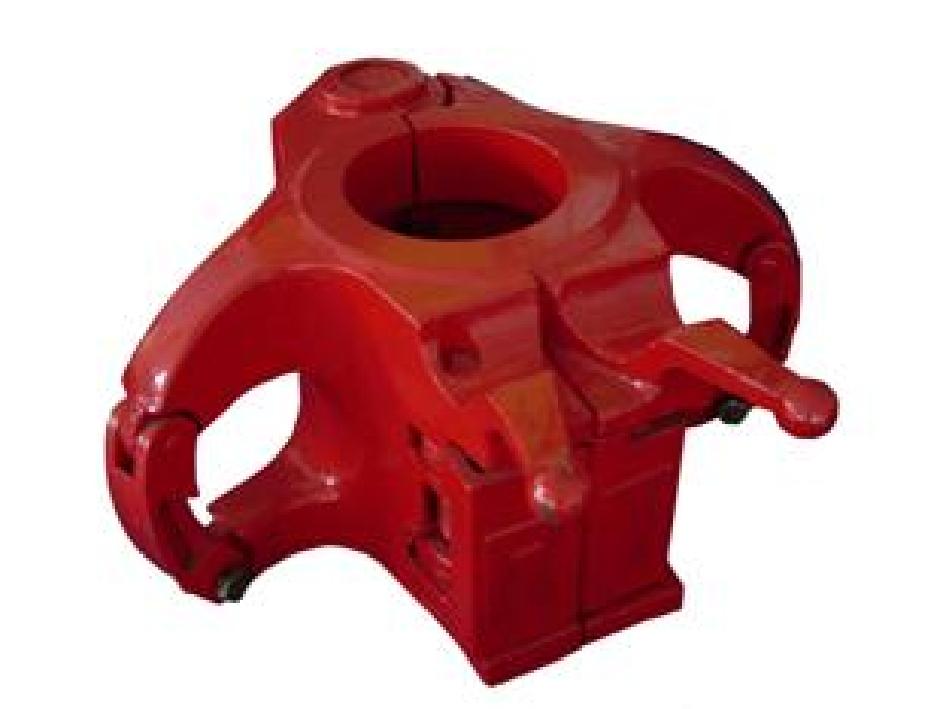

API 8C Standard Collar Type TA & SLX Series 90° Elevators

 API Spec 8C  | Rated 35 to 500 Tons | Fast-Track 35-Day Delivery

Executive Overview

Engineered for safe and efficient hoisting of plain casing, slick drill collars, and tubing during drilling and completion operations, our Collar Type TA (Center-Latch) and SLX (Side-Door) 90° Square Shoulder Elevators provide robust pressure and load containment under heavy rig-floor stress.

Manufactured from high-strength, heat-treated alloy steel, our elevators deliver 100% direct component and dimension interchangeability with BJ (Varco/NOV), BVM, and Web Wilson industry standards. Rig crews can replace latch pins, hinge pins, springs, or complete door assemblies without modifying existing link arms or hoisting equipment.

Fully certified to API Spec 8C (PSL 1 / PSL 2 / SR2) with capacity ratings from 35 tons to 500 tons, our elevators feature dual-safety automatic latch locks, -40°C low-temperature impact toughness, pre-fitted link blocks, and a guaranteed 35-day fast-track delivery.

Product Comparison & Engineering Performance

1. Type TA Center-Latch Elevators (35T to 150T)

  • Operational Design: Features a center-latch mechanism with two symmetrical body halves that swing around the tubular. Ideal for rapid handling of tubing, light casing, and drill collars (sizes from 1.05″ to 8-5/8″).

  • Automatic Safety Locking: Equipped with a spring-loaded latch and latch lock that automatically engages upon closing around the pipe, preventing accidental opening during rapid trips.

2. Type SLX Side-Door Elevators (100T to 500T)

  • Heavy-Duty Side-Door Architecture: Features a single hinged door and a rigid main body structure, designed for heavy casing and large-diameter slick drill collars (sizes up to 36″).

  • Dual-Handed Safety Release: Incorporates a guarded secondary safety latch pin system that requires deliberate two-handed operation to open, eliminating dropped-tubular hazards during severe rig-floor vibration.

       [ HOISTING TOP DRIVE / SWIVEL ]
                     │
           ┌─────────┴─────────┐
           ▼                   ▼
    [ API LINK ARMS ]   [ API LINK ARMS ]
           │                   │
 ┌─────────┴───────────────────┴─────────┐
 │  TA / SLX TYPE ELEVATOR BODY                 │ ◄── 100% BJ/NOV Interchangeable
 ├───────────────────────────────────────┤
 │  DUAL SAFETY LATCH & LOCK ASSEMBLY │ ◄── Automatic Anti-Drop Lock
 ├───────────────────────────────────────┤
 │  90° SQUARE SHOULDER BORE                  │ ◄── Rated 35T to 500T / -40°C Tested
 └───────────────────┬───────────────────┘
                     ▼
       [ SLICK DRILL COLLAR / CASING ]

Technical Specifications

Elevator TypeModel SeriesApplicable Tubular TypesCapacity Ratings (Tons)Bore Size RangeAPI Standard & Quality Level
Center-LatchType TATubing, Plain Casing, Drill Collars35, 65, 100, 150 Tons1.05″ to 8-5/8″API 8C PSL 2 / SR2 (-40°C Impact)
Side-DoorType SLXHeavy Casing, Large Slick Collars100, 150, 250, 350, 500 Tons2-3/8″ to 36″API 8C PSL 2 / SR2 (-40°C Impact)

Global Supply Chain & Operational Reliability

  • Fast-Track 35-Day Delivery: Maintained alloy steel casting inventories and dedicated CNC machining lines ensure complete elevator packages dispatch within 35 days.

  • Proven Global Field Record: Trusted by international drilling contractors operating across North America, the Middle East, Central Asia, and South America.

  • 100% Quality Validation: Every elevator undergoes 1.5x rated load testing, magnetic particle inspection (MPI), non-destructive testing (NDT), and dimensional drift verification prior to shipment.

  • Included Spare Parts: Shipped complete with link block bolts, latch springs, hinge pins, and heavy-duty VCI export packaging.

Frequently Asked Questions

Q1: What is the main structural difference between TA and SLX elevators?

Answer: Type TA elevators feature a center-latch design with two swinging halves for fast, lightweight handling of smaller tubulars and drill collars (up to 150 tons). Type SLX elevators feature a rigid side-door construction designed for high load capacities (up to 500 tons) and large-diameter casing or heavy slick drill collars.

Q2: How do your elevators ensure safety against accidental release?

Answer: Both TA and SLX elevators incorporate automatic spring-loaded latches and secondary safety latch locks. SLX models feature guarded safety pins requiring two-handed operation to unlock, preventing accidental opening during heavy hoisting or wellbore dynamic vibration.

Q4: Can your TA and SLX elevators be operated in extreme arctic temperatures?

Answer: Yes. Manufactured from high-grade alloy steel and heat-treated to API 8C SR2 standards, our elevators undergo Charpy V-Notch impact testing at -40°C (-40°F) to ensure fracture toughness and prevent structural failure in extreme cold-weather operations.

Q5: What is your standard delivery time for TA and SLX elevator orders?

Answer: We guarantee a fast-track 35-day delivery time for standard TA and SLX elevator models and replacement spare parts packages.

Technical technical data

Type

 Cap.

 Size

 Frame

Link   Size

 Weight

 Min.

 Max.


tons

inches

mm


inches

mm

inches

mm

lbs

kg

 TA

 35

 1.050 " - 2 7/8"

 28-73

 32387Y

 1   1/4"

 32

 1   3/4"

 44

 57

 26

 TA

 65

 1.660" - 2 7/8"

 42-73

 32385Y

 1   3/4"

 44

 2   3/4"

 70

 101

 46

 TA

 65

 3   1/2" - 4 1/2"

 89-114

 32386Y

 1   3/4"

 44

 2   3/4"

 70

 136

 62

 TA

 100

 2   3/8" - 5"

 60-127

 50006510Y

 1   3/4"

 44

 2   3/4"

 70

 121

 55

 TA

 100

 4   3/4" - 8 5/8"

 121-219

 200000Y

 1   3/4"

 44

 2   3/4"

 70

 260

 118

 TA

 150

 4   1/2" - 8 5/8"

 114-219

 32754Y

 1   3/4"

 44

 3   1/2"

 89

 370

 168

 TA

 150

 8   1/2" - 11 1/4"

 216-286

 39342Y

 1   3/4"

 44

 3   1/2"

 89

 524

 238
