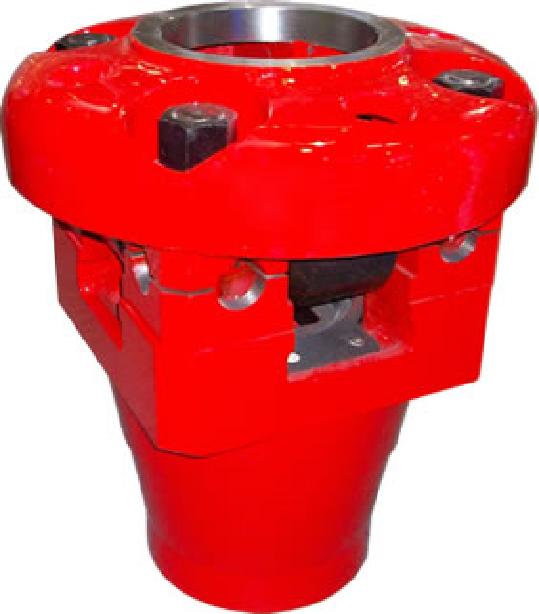

API Spec 7K Roller Kelly Bushing (RKB Series)

API Spec 7K Monogrammed | -40°C Arctic Toughness Tested | High-Torque Rotary Power Transmission | Fast-Track 35-Day Global Delivery

Executive Overview

Engineered for high-torque rotary drilling and smooth vertical feed-off under heavy loads, our API Spec 7K Roller Kelly Bushings (RKB Series) provide reliable torque transmission from the rotary table master bushing to square and hexagonal kelly pipes.

Manufactured from high-strength, heat-treated alloy steel housings and wear-resistant internal rollers, our roller kelly bushings deliver exceptional durability and smooth axial movement on the rig floor. Rig crews can interchange drive rollers, wiper assemblies, and retaining pins directly on location to match various rotary master bushings (such as 17-1/2″, 20-1/2″, 27-1/2″, and 37-1/2″ pin-drive or square-drive bowls).

Fully certified under API Spec 7K, our roller kelly bushing portfolio features -40°C low-temperature impact toughness (≥42J), precision-engineered roller contact geometry to eliminate string binding, and a guaranteed fast-track 35-day delivery. We serve active land and offshore drilling contractors across Central Asia, the Middle East, North America, and global export basins.

Product Portfolio & Engineering Specifications

1. Heavy-Duty Square Drive & Pin Drive Series (HDP / PDHD)

  • Target Application: Deep wells, extended-reach drilling (ERD), and high-torque offshore/onshore rigs handling heavy kelly loads.

  • Size Coverage: Accommodates square and hexagonal kellys ranging from 3″ to 6″, utilizing interchangeable roller assemblies and wiper plates.

  • High-Torque Endurance: Precision-honed roller bearings ensure smooth axial movement and friction reduction while transmitting maximum rotary torque.

2. Medium-Duty & Light-Duty Series (MDS / LDS)

  • Target Application: Standard land drilling rigs, workover units, and shallow-to-medium depth well programs.

  • Size Coverage: Accommodates kelly sizes from 2-1/2″ to 5-1/4″.

  • Optimized Efficiency: Lightweight structural design facilitates rapid manual installation and maintenance on the rig floor.

Technical Performance & Engineering Advantages

1. -40°C Low-Temperature Impact Toughness (API 7K Tested )

  • Brittle Fracture Prevention: Forged and heat-treated alloy steel bodies withstand severe sub-zero winter climates (-40°C / -40°F) in Central Asia, North America, and northern drilling basins.

  • Charpy V-Notch Energy Absorption: Achieves a verified Charpy V-Notch impact energy absorption value ≥42 J\ge 42\text{ J} at -40°C, ensuring structural elasticity under high dynamic shock loads.

2. Friction-Reduction Roller & Wiper Technology

  • Uninhibited Axial Movement: Allows the kelly pipe to move freely up and down while rotating, enabling continuous drilling feed-off without string binding or premature string wear.

  • Integrated Mud Wiper Assemblies: Equipped with heavy-duty rubber wiper blocks that prevent drilling mud and debris from entering the roller mechanism, extending component service life by up to 20%.

Technical Specifications Matrix

RKB Series ModelDrive TypeApplicable Kelly Size Range (Square / Hex)Master Bushing CompatibilityAPI Standard & Quality LevelLow-Temp Impact Rating (SR2)
RKB / HDP Heavy-DutySquare / Pin Drive3″ to 6″ (76.2 – 152.4 mm)17-1/2″, 20-1/2″, 27-1/2″, 37-1/2″API Spec 7K Monogrammed-40°C Charpy V-Notch (≥42 J)
MDS Medium-DutySquare / Pin Drive2-1/2″ to 5-1/4″17-1/2″ and 20-1/2″ Master BushingsAPI Spec 7K Monogrammed-40°C Charpy V-Notch (≥42 J)
LDS Light-DutySquare Drive2-1/2″ to 4-1/4″17-1/2″ Master BushingsAPI Spec 7K Monogrammed-40°C Charpy V-Notch (≥42 J)

Complete Quality Assurance & Documentation Package

Every Roller Kelly Bushing ships with a comprehensive compliance file to satisfy third-party oil operator audits and rig inspections:

  • API Spec 7K Monogrammed Certificate: Official quality compliance per API 7K equipment design specifications.

  • 1.5x Rated Load & Torque Test Certificate: Verified factory test results proving torque transmission and structural integrity under overload conditions.

  • Full MTR (Material Test Reports): Chemical composition and mechanical property mill test traceabilities per EN 10204 3.1.

  • UT & MT Non-Destructive Inspection Reports: Ultrasonic and magnetic particle examination records verifying zero internal or surface casting defects.

  • Standard Delivery Package: Pre-installed rollers, wiper assemblies, retaining pins, and heavy-duty export VCI anti-corrosion barrier packaging.

Global Supply Chain & Operational Reliability

  • Fast-Track 35-Day Guaranteed Delivery: Maintained housing casting inventories and dedicated CNC machining lines ensure complete roller kelly bushing assemblies and replacement spare kits dispatch within 35 days.

  • Global Export Proven: Actively deployed across active land and offshore drilling fleets in Central Asia (Kazakhstan, Uzbekistan, Turkmenistan), the Middle East (Saudi Arabia, UAE, Iraq, Oman), and North America.

  • Export-Grade Logistics: Packed in heavy-duty structural wooden crates with internal VCI vacuum barrier sealing to protect precision ground roller pins and housing surfaces during international ocean or overland transport.

Frequently Asked Questions

Q1: How do I select the correct roller assembly for square versus hexagonal kelly pipes?

Answer: The bushing body accepts interchangeable roller sets. By swapping out the four drive rollers and wiper inserts (available for square or hex kellys ranging from 3″ to 6″), a single bushing body can be quickly reconfigured on the rig floor to match your specific kelly geometry.

Q2: Can these roller kelly bushings operate reliably in sub-zero winter temperatures in Central Asia and North America?

Answer: Yes. Heat-treated to meet strict API low-requirements, our alloy steel bushing bodies undergo Charpy V-Notch impact testing down to -40°C (-40°F), achieving an energy absorption value of ≥42 J\ge 42\text{ J} to prevent brittle fracture in extreme cold-weather operations.

Q3: What QA and testing documentation is supplied with each roller kelly bushing shipment?

Answer: Every unit ships complete with an API Spec 7K Monogrammed Certificate, 1.5x Rated Torque Test Certificate, full MTRs (Material Test Reports), and UT/MT non-destructive inspection reports.

Q4: What is your standard lead time for roller kelly bushing orders destined for the Middle East and Central Asia?

Answer: We guarantee a fast-track 35-day delivery timeline for standard RKB/HDP roller kelly bushing assemblies and replacement spare parts packages, backed by robust VCI export crating for secure international shipping.
