API 7K Heavy-Duty Triplex Drilling Mud Pumps

100% Interchangeable with EMSCO F Series | 45-Day Guaranteed Delivery | 7,500 PSI High-Pressure Qualified

Executive Overview

Designed for ultra-deep well drilling, extended-reach horizontal wells, and heavy-duty offshore platforms, our API Spec 7K Heavy-Duty Triplex Mud Pumps (Bomco F-1600, F-1600L, F-1600HL, F-2200, and F-2200HL) deliver high hydraulic power, extended continuous operation, and reliable pressure containment.

Manufactured to exact 1:1 dimensional and metallurgical standards, these heavy-duty pumps provide 100% dimensional and functional interchangeability with Continental EMSCO F-Series designs (FB-1600 / FA-2200). Drilling contractors can integrate these bare pumps or complete skid packages directly into existing rig layouts without altering drive alignments, manifold piping, or foundation footprints. Supported by a guaranteed 45-day lead time, a 0-quality-claim track record, and full API 7K / ISO 9001 certifications, our pumps keep high-horsepower drilling operations running efficiently worldwide.

Technical Performance & Engineering Advantages

1. 100% Continental EMSCO F-Series Interchangeability

  • Direct Drop-In Fit: Engineered with exact dimensional matching for EMSCO FB-1600 and FA-2200 models.

  • Global Inventory Compatibility: Fluid end components (liners, pistons, valves, seats) and power end transmission parts (crankshafts, pinions, crossheads) are 100% interchangeable with standard international spares, simplifying global logistics for drilling contractors.

2. High-Pressure Fluid End & Model Variations (5,000 PSI & 7,500 PSI)

  • Forged 4140/4340 Alloy Steel Modules: Fluid end blocks feature internal autofrettage stress-relief processing to prevent fatigue cracking at cross-bore intersections under extreme thermal and pressure cycling.

  • Specialized High-Horsepower Model Configurations:

    • F-1600 & F-1600L: Standard 1,600 HP triplex pumps configured with L-shaped fluid end modules for rapid valve and seat changeouts on deep land rigs.

    • F-1600HL & F-2200HL (7,500 PSI High-Pressure Ratings): Heavy-duty, high-pressure series rated for continuous 7,500 PSI (51.7 MPa) working pressure—built specifically for high-pressure deepwater and high-temperature (HPHT) shale completions.

    • F-2200 (2,200 HP): Ultra-high capacity 2,200 HP triplex pump designed to maintain maximum mud flow rates during deep drilling programs (6,000m+ / 20,000ft+).

3. Heavy-Duty Power End & Dual Lubrication

  • Herringbone Gear Drive: Precision-ground double-helical (herringbone) gears eliminate axial side thrust loads and deliver quiet, smooth power transmission.

  • Dual Force & Splash Lubrication: An internal gear-driven pump delivers forced oil flow to main bearings, pinions, and crosshead guides, while splash lubrication ensures continuous protection even during low SPM operation.

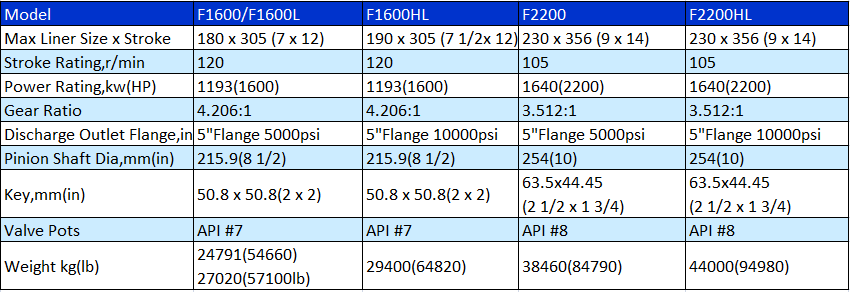

Technical Specifications 图片.png

Global Supply Chain & Operational Advantages

  • Guaranteed 45-Day Lead Time: Streamlined manufacturing workflows and stocked forging inventories ensure complete bare pumps or skid packages dispatch within 45 days.

  • 100% Factory Quality Validation: Every pump undergoes hydrostatic fluid end testing, gear backlash alignment checks, and full-power run-in testing prior to shipment.

  • Export-Grade Protection: Heavy-duty structural skids protected with VCI anti-corrosion barrier vacuum packaging for long-distance marine or desert transport.

Frequently Asked Questions

Q1: Are your Bomco F-1600 and F-2200 series mud pumps 100% interchangeable with Continental EMSCO F-Series pumps?

Answer: Yes. All models—including the F-1600, F-1600L, F-1600HL, F-2200, and F-2200HL—are engineered to match Continental EMSCO FB-1600 and FA-2200 specifications with 100% dimensional and functional interchangeability. Skids, manifold outlets, gear ratios, and fluid end expendable parts drop directly into existing EMSCO pump layouts without modification.

Q2: What is the difference between standard F-1600/F-2200 pumps and the HL high-pressure series (F-1600HL / F-2200HL)?

Answer: The HL series (F-1600HL and F-2200HL) is built for high-pressure deep drilling, rated for 7,500 PSI (51.7 MPa) continuous working pressure. They utilize upgraded 7,500 PSI forged fluid end blocks, high-strength bonnet threading, and reinforced power end components, whereas standard models are rated for 5,000 PSI (34.5 MPa).

Q3: What is the lead time for complete 1600 HP and 2200 HP mud pump orders?

Answer: We guarantee a 45-day dispatch timeline for complete bare pumps or skid-mounted units across the F-1600, F-1600L, F-1600HL, F-2200, and F-2200HL product lines. High-wear fluid end spares are maintained in ready-to-ship inventory.
