API Spec 8C Monogrammed | Forged Alloy Steel Construction | Integrated Spring-Loaded Bumper & Locking Mechanism | Fast-Track Global Delivery to Central Asia & the Middle East

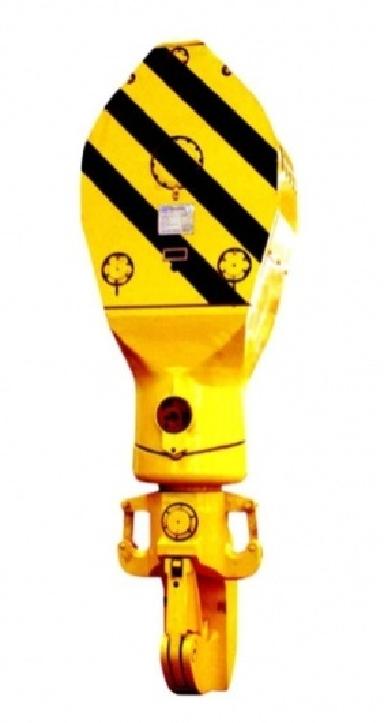

Engineered for heavy-duty hoisting, smooth block travel, and reliable drill string handling in deep and ultra-deep wells, our premium API Spec 8C Hook Blocks (HB Series, Models HB150, HB175, HB200, HB250, HB350 & HB500) deliver exceptional structural load capacity, safety, and operational reliability on land and offshore rigs.
Manufactured from high-strength alloy steel forgings in strict accordance with API Spec 8C standards, our hook blocks combine heavy-duty sheave assemblies, high-capacity thrust bearings, and an integrated spring-loaded bumper mechanism to absorb shock loads and protect drill pipe threads during makeup and breakout. Designed for global export to demanding operating basins—including sub-zero winter environments in Central Asia and high-ambient-temperature oilfields in the Middle East—every hook block undergoes 100% UT/MT non-destructive examination, 1.5x proof load testing, and is backed by full material test traceability.
With a guaranteed 35–45 day fast-track delivery timeline, we supply certified hoisting equipment to drilling contractors and energy operators worldwide.
Design & Capacity Range: Available in static load ratings from 150 metric tons (150 ton) up to 500 metric tons (500 ton) to match standard rig derrick capacities.
Integrated Safety Architecture: Features a multi-position locking hook, a positive-locking bail latch to prevent elevator dropping, and an internal spring dampener that minimizes bounce and protects tool joint threads.
Sheave & Bearing Assembly: Precision-machined sheaves mounted on heavy-duty tapered roller bearings with centralized grease lubrication channels for smooth, low-friction operation.
Positive Hook Locking: Equipped with an easy-to-operate multi-position locking device that secures the hook in various radial orientations, preventing unwanted rotation during drilling and tripping.
Drop-Prevention Bail Design: Forged bail is engineered with high-impact toughness and safety latches to ensure secure connection with the traveling block and top drive hook assembly.
Internal Spring Dampener: The heavy-duty spring pack absorbs vertical shock loads when landing drill strings or casing, significantly reducing fatigue on the hook body and preventing thread damage on expensive drill pipe connections.
Flame-Hardened Sheave Grooves: Wireline sheave grooves are precision-machined and flame-hardened to minimize wire rope wear and extend operating service life.
-40°C Arctic Toughness: Forged alloy steel components are heat-treated to achieve high Charpy V-Notch impact toughness at sub-zero temperatures, preventing brittle fracture during winter operations in Central Asia.
Middle East Desert Durability: Sealed bearing housings and high-temperature grease retention systems prevent sand ingress and thermal breakdown in harsh desert environments.
Model | HB 150 | HB 175 | HB200 | HB250 | HB350 | HB500 |
Maximum hook load, ton | 150 | 175 | 200 | 250 | 350 | 500 |
Number of sheaves | 4 | 4 | 5 | 5 | 5 | 6 |
Sheave Diameter | 30" or 36" | 30" | 36" | 36" or 44" | 50" | 60" |
Wire rope diameter | 1" or 1-1/8" | 1-1/8" | 1-1/8" | 1-1/8" or 1 1/4" | 1 1/4" | 1-3/8" |
Dimensions(L x W x H), in | 122x39x26 | 121x33x30 | 134x38x29 | 146x47x31 | 165x53x35 | 193x63x32 |
Weight, lbs | 7550 | 7230 | 10120 | 14550 | 23940 | 27620 |
Every hook block shipment is delivered with a comprehensive export compliance package:
API Spec 8C Monogrammed Certificate: Official quality compliance ensuring strict adherence to design, manufacturing, and rating standards.
1.5x Proof Load Test Certificate: Verified factory load testing proving structural integrity under 150% of rated working load.
Full MTR (Material Test Reports): Chemical composition and mechanical property mill test traceabilities per EN 10204 3.1.
UT & MT Non-Destructive Inspection Reports: Ultrasonic and magnetic particle examination records verifying zero internal or surface forging defects.
Export-Grade Protection: Packed in heavy-duty structural steel crates with VCI anti-corrosion barriers to withstand long-distance ocean and overland transit.
Answer: The HB series (Models HB150 through HB500) features a multi-position hook locking device to secure the hook orientation, a heavy-duty positive-locking bail latch, and forged high-tensile alloy steel components designed to eliminate accidental load releases on the rig floor.
Answer: The internal spring dampener absorbs vertical impact and shock loads when the drill string or casing is handled or landed, preventing impact spikes that can damage tool joint threads and cause fatigue failure.
Answer: Yes. Our hook blocks are forged from high-purity alloy steels heat-tested for -40°C arctic impact toughness, and they utilize heavy-duty sealed bearing packings designed to resist thermal breakdown and sand contamination in Middle Eastern deserts.
Answer: Every unit ships complete with an API Spec 8C Monogrammed Certificate, 1.5x Proof Load Test Certificate, full MTRs per EN 10204 3.1, and 100% UT/MT non-destructive inspection reports.
Answer: We guarantee a fast-track 35 day delivery timeline for standard and custom-configured HB series hook blocks (HB150, HB175, HB200, HB250, HB350, and HB500), complete with robust export-grade crating.
