TECHNICAL PARAMETERS
Hook load(ton): S150 200 250 500
Working pressure: 5000psi
IMPLEMENTATION OF STANDARDS
  • API 8C
PRODUCT DESCRIPTION

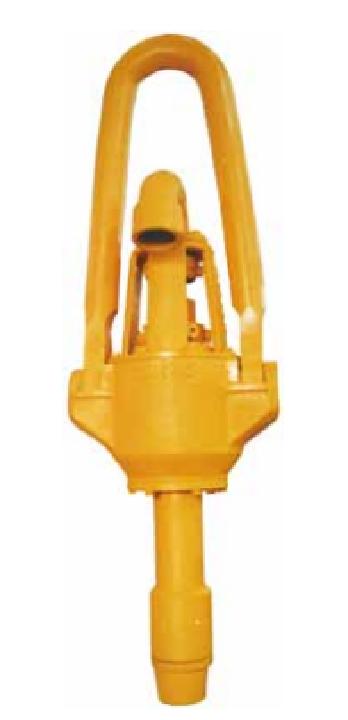

API Spec 8C Rotary Swivels

API Spec 8C  | 35 MPa (5,000 PSI) Mud Pressure Rating | 300 RPM Maximum Speed | -40°C Arctic Toughness | Guaranteed 30-Day Fast-Track Global Delivery

Executive Overview

Engineered to support heavy drill strings while providing a high-pressure, leak-free fluid pathway for continuous mud circulation, our premium API Spec 8C Rotary Swivels (S Series: Models S150, S200, S250, and S500) deliver unmatched performance, safety, and reliability for global land and offshore drilling operations.

Manufactured in strict accordance with API Spec 8C standards, our swivels combine heavy-duty thrust bearings, precision-forged alloy steel bails and bodies, and quick-change cartridge washpipe assemblies. Designed for severe operating environments—including sub-zero winter drilling across Central Asia and corrosive, high-temperature desert oilfields in the Middle East—every swivel undergoes 100% UT/MT non-destructive examination, 1.5x proof load testing, and rigorous quality verification.

Backed by an aggressive guaranteed 30-day fast-track delivery timeline, we supply certified rotary swivels to national oil companies, drilling contractors, and energy operators worldwide.

Product Portfolio & Engineering Specifications

S Series Rotary Swivel Lineup (Models S150, S200, S250 & S500)

  • Load Capacity Spectrum: Covers static hook load ratings from 150 metric tons (S150), 200 metric tons (S200), 250 metric tons (S250), up to heavy-duty 500 metric tons (S500) to accommodate mobile workovers, standard land rigs, and ultra-deep drilling programs.

  • High-Pressure Mud Circulation: Rated for working pressures up to 35 MPa (5,000 PSI), ensuring seamless fluid transfer under high-volume mud pump operations.

  • Rotational Capability: Precision bearing arrangement supports maximum rotational speeds up to 300 RPM.

Technical Performance & Engineering Advantages

1. Rig-Floor Maintainability & Cartridge Washpipe System

  • Quick-Change Washpipe Design: Features a cassette/cartridge-style washpipe and packing assembly that allows rapid replacement on the rig floor without disconnecting the rotary hose or gooseneck, drastically cutting Non-Productive Time (NPT).

  • Extended Wear Resistance: Specially hardened washpipes and multi-stage dynamic sealing packing reduce friction and resist abrasive mud scoring.

2. Robust Bearing Assembly & Flow Efficiency

  • Heavy-Duty Main Bearings: Engineered with high-capacity radial and thrust bearings that absorb axial drill-string weight and radial loads smoothly under high RPMs.

  • Unrestricted Gooseneck Geometry: Wide-radius gooseneck design minimizes fluid turbulence and pressure drop, maximizing mud flow efficiency toward the drill bit.

3. Extreme Climate & Regional Field Readiness

  • -40°C Arctic Toughness: Primary load-bearing forgings (bails, bodies, and stems) are heat-treated and Charpy V-Notch impact tested to prevent brittle fracture during extreme sub-zero winter operations in Central Asia.

  • Middle East Desert Durability: Advanced multi-stage labyrinth seals and high-temperature grease retention systems protect internal bearings against abrasive sand ingress and intense solar heat in Middle Eastern oilfields.

Technical Specification(API 8C)

Type

S150

S200

S250

S500

Static   hook load, ton

150

200

250

500

Working   pressure, psi

5000

5000

5000

5000

Maximum   Speed, rpm

300

300

300

300

Coupling   thread to stem

4   1/2"Reg LH

4   1/2"Reg LH

6   5/8"Reg LH

7   5/8"Reg LH

Coupling   thread to Kelly

6   5/8"Reg LH

6   5/8"Reg LH

6   5/8"Reg LH

6   5/8"Reg LH

Stem   I.D.

2   1/2"

2   1/2"

3"

3"

Dimensions(L   x W x H), in

90x26x25

107x33x31

117x39x39

120x44x43

Weight,   lbs

1710

2750

5510

6390

Quality Assurance & Compliance Documentation

Every rotary swivel shipment is delivered with a comprehensive export compliance package to satisfy third-party oil operator audits and rig inspections:

  • API Spec 8C Monogrammed Certificate: Official quality compliance ensuring strict adherence to design, static load rating, and manufacturing standards.

  • 1.5x Proof Load Test Certificate: Verified factory load testing proving structural integrity under 150% of rated working load.

  • Full MTR (Material Test Reports): Chemical composition and mechanical property mill test traceabilities per EN 10204 3.1 for all primary load-bearing forgings (bail, body, stem).

  • UT & MT Non-Destructive Inspection Reports: Ultrasonic and magnetic particle examination records verifying zero internal or surface forging defects.

  • Export-Grade Protection: Packed in heavy-duty structural steel crates with internal VCI anti-corrosion barriers to withstand long-distance ocean and overland transit.

Frequently Asked Questions

Q1: How does the quick-change washpipe design reduce downtime on the rig floor?

Answer: The S Series features a cartridge-style washpipe and packing assembly that can be replaced rapidly without disconnecting the rotary mud hose or gooseneck, significantly reducing non-productive time (NPT) during maintenance.

Q2: What are the pressure and rotational speed limits for these swivels?

Answer: All S Series models (S150, S200, S250, and S500) are engineered for a maximum working pressure of 35 MPa (5,000 PSI) and a maximum rotational speed of 300 RPM, covering standard and heavy-duty drilling mud programs.

Q3: Are these swivels certified for sub-zero winter operations in Central Asia and high heat in the Middle East?

Answer: Yes. Our swivels are forged from high-purity alloy steels heat-tested for -40°C arctic impact toughness, and they utilize robust labyrinth seals and high-temperature grease systems designed to prevent sand ingress and thermal breakdown in Middle Eastern deserts.

Q4: What is your delivery lead time for export orders to Central Asia and the Middle East?

Answer: We maintain dedicated forging and assembly lines to guarantee an industry-leading fast-track 30-day delivery timeline for standard S Series rotary swivels (S150, S200, S250, and S500), complete with full certification and robust steel crating.

Q5: What QA certificates and test reports are included with each swivel shipment?

Answer: Every unit ships complete with an API Spec 8C Certificate, 1.5x Proof Load Test Certificate, full EN 10204 3.1 Material Test Reports (MTRs), and 100% UT/MT non-destructive inspection reports.
