  • PRODUCT DESCRIPTION
TECHNICAL PARAMETERS
SPIRAL DRILL COLLAR
IMPLEMENTATION OF STANDARDS
  • API7-1
PRODUCT DESCRIPTION

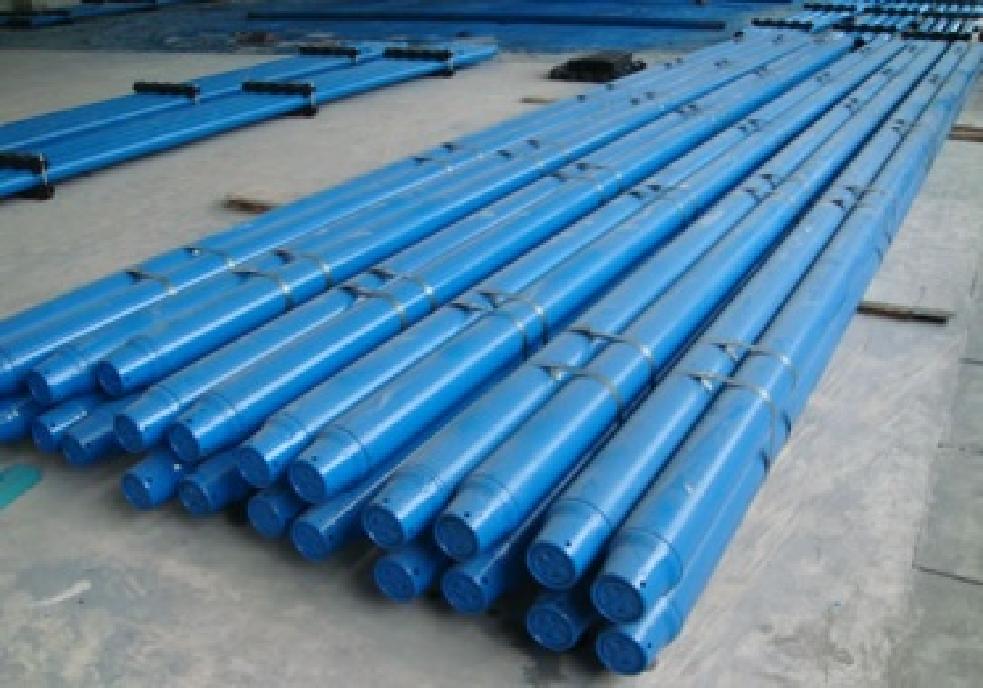

There are three kinds of drill collars, slick drill collars, spiral drill collars, and non-magnetic drill collars.

Slick Drill collars

Slick drill collars are made of AISI 4145 or 4145H modified alloy steel with full length heat treatment process, which ensures the mechanical properties meet API SPEC 7 and a hardness of 285-341 HB.

 Dimensions of standard drill collar

Drill   collar

Outside   diameter c

Bore

Length

Bevel   diameter

Reference

number

D mm

d

L

DF

bending   strength

and


mm

m

mm

ratio

connection   label


+1 ,5 9 0

± 152,4 mm d

± 0,4 mm

BSR e

NC23 – 31

3 1/8"

79,4

1 1/4"

31,8

9,14

76,2

2,57:1

NC 26 – 35

3 1/2"

88,9

1 1/2"

38,1

9,14

82,9

2,42:1

NC31 – 41

4 1/8"

104,8

2"

50,8

9,14 or 9,45

100,4

2,43:1

NC 35 – 47

4 3/4"

120,6

2"

50,8

9,14 or 9,45

114,7

2,58:1

NC 38 – 50

5"

127,0

2 1/4"

57,2

9,14 or 9,45

121,0

2,38:1

NC 44 – 60

6"

152,4

2 1/4"

57,2

9,14 or 9,45

144,5

2,49:1

NC 44 – 60

6"

152,4

2 13/16"

71,4

9,14 or 9,45

144,5

2,84:1

NC 44 – 62

6 1/4"

158,8

2 1/4"

57,2

9,14 or 9,45

149,2

2,91:1

NC46 – 62

6 1/4"

158,8

2 13/16"

71,4

9,14 or 9,45

150,0

2,63:1

NC46 – 65

6 1/2"

165,1

2 1/4"

57,2

9,14 or 9,45

154,8

2,76:1

NC46 – 65

6 1/2"

165,1

2 13/16"

71,4

9,14 or 9,45

154,8

3,05:1

NC46 – 67

6 3/4"

171,4

2 1/4"

57,2

9,14 or 9,45

159,5

3,18:1

NC 50 – 70

7"

177,8

2 1/4"

57,2

9,14 or 9,45

164,7

2,54:1

NC 50 – 70

7"

177,8

2 13/16"

71,4

9,14 or 9,45

164,7

2,73:1

NC50 – 72

7 1/4"

184,2

2 13/16"

71,4

9,14 or 9,45

169,5

3,12:1

NC56 – 77

7 3/4"

196,8

2 13/16"

71,4

9,14 or 9,45

185,3

2,70:1

NC56 – 80

8"

203,2

2 13/16"

71,4

9,14 or 9,45

190,1

3,02:1

6 5/8 REG

8 1/4"

209,6

2 13/16"

71,4

9,14 or 9,45

195,6

2,93:1

NC61 – 90

9"

228,6

2 13/16"

71,4

9,14 or 9,45

212,7

3,17:1

7 5/8 REG

9 1/2"

241,3

3"

76,2

9,14 or 9,45

223,8

2,81:1

NC70 - 97

9 3/4"

247,6

3"

76,2

9,14 or 9,45

232,6

2,57:1

NC70– 100

10"

254,0

3"

76,2

9,14 or 9,45

237,3

2,81:1

8 5/8 REG

11"

279,4

3"

76,2

9,14 or 9,45

266,7

2,84:1

Mechanical properties of drill collars

OutsideDiameter
  Inch

OutsideDiameter
  mm

TensileStrength
  Mpa

YieldStrength
  Mpa

Elongation(L=4D)
  %

ImpactAKV
  J

BrinellHardness
  HB

3 1/8-6 3/4

79.4-171.4

≥965

≥758

≥13

≥54

≥285

0

177.8-254

≥930

≥689

≥13

≥54

≥285

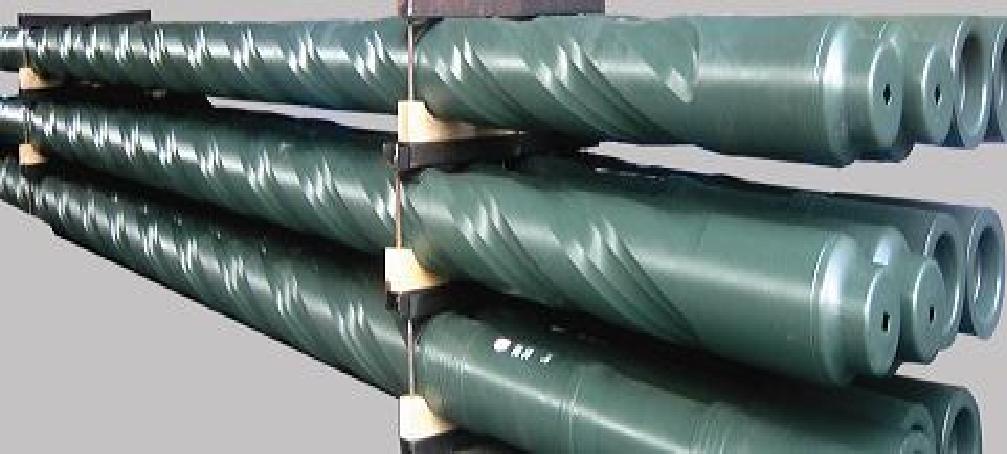

Spiral grooved Drill Collar

OD   Range (in)

4-4 3/8

4 1/2-5 1/8

5 1/4-6 3/8

6 1/2-7

7 1/8-7 7/8

8-8 7/8

9-9 7/8

Depth   of cut (in)

6 2/3± 1/32

7/32± 1/32

1/4± 1/32

5/16± 1/16

11/32± 1/16

3/8± 1/16

13/32± 3/32

Spiral   Pitch (in)

36 ± 1

38 ± 1

42 ± 1

42 ± 1

64 ± 1

68 ± 1

72 ± 1

Non-Magnetic Drill Collar

Non-magnetic drill collars are made of low chrome manganese and low carbon alloy steel. The chemical composition is strictly controlled during the refining and forging process, with favorable low magnetic permeability, high strength of mechanical properties and outstanding resistant to stress corrosion cracking and no tendency to galling.
