Wellheads Christmas Tree Components Casing Spool C-22/C-29 Casing Spool C-22/C-29

Casing Spool C-22/C-29

  • PRICE-
  • CURRENCYUSD
  • BRAND
  • Product Type
  • Top Flange Size (in)
  • Top Flange Pressure(psi)
  • Bottom Flange Size (in)
  • Bottom Flange Pressure(psi)
  • C-22
  • 11
  • 2000
  • 11
  • 2000
  • C-22
  • 11
  • 3000
  • 11
  • 3000
  • C-22
  • 11
  • 3000
  • 13 5/8
  • 3000
  • C-22
  • 11
  • 3000
  • 13 5/8
  • 2000
  • C-22
  • 11
  • 3000
  • 16 3/4
  • 2000
  • C-22
  • 11
  • 3000
  • 16 3/4
  • 3000
  • C-22
  • 11
  • 5000
  • 13 5/8
  • 3000
  • C-22
  • 11
  • 5000
  • 16 3/4
  • 3000
  • C-22
  • 11
  • 10000
  • 13 5/8
  • 5000
  • C-22
  • 13 5/8
  • 5000
  • 16 3/4
  • 3000
  • C-22
  • 13 5/8
  • 3000
  • 21 1/4
  • 2000
  • C-29
  • 11
  • 3000
  • 11
  • 3000
  • C-29
  • 11
  • 3000
  • 13 5/8
  • 3000
  • C-29
  • 11
  • 3000
  • 16 3/4
  • 3000
  • C-29
  • 11
  • 5000
  • 11
  • 3000
  • C-29
  • 11
  • 5000
  • 13 5/8
  • 3000
  • C-29
  • 11
  • 5000
  • 13 5/8
  • 5000
  • C-29
  • 11
  • 5000
  • 16 3/4
  • 3000
  • C-29
  • 11
  • 5000
  • 16 3/4
  • 5000
  • C-29
  • 11
  • 10000
  • 11
  • 10000
  • C-29
  • 11
  • 10000
  • 13 5/8
  • 5000
  • C-29
  • 13 5/8
  • 3000
  • 20 3/4
  • 3000
  • C-29
  • 13 5/8
  • 5000
  • 20 3/4
  • 3000
  • Number of product packages
  • Shipping cycle
  • Price
  • Quantity
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • 1 pc
  • 30
  • -
  • - +
    piece
  • PRODUCT DESCRIPTION
TECHNICAL PARAMETERS
Top Flange Size: 11"- 13 5/8"
Working Pressure: 2000-10000psi
IMPLEMENTATION OF STANDARDS
  • API 6A
PRODUCT DESCRIPTION

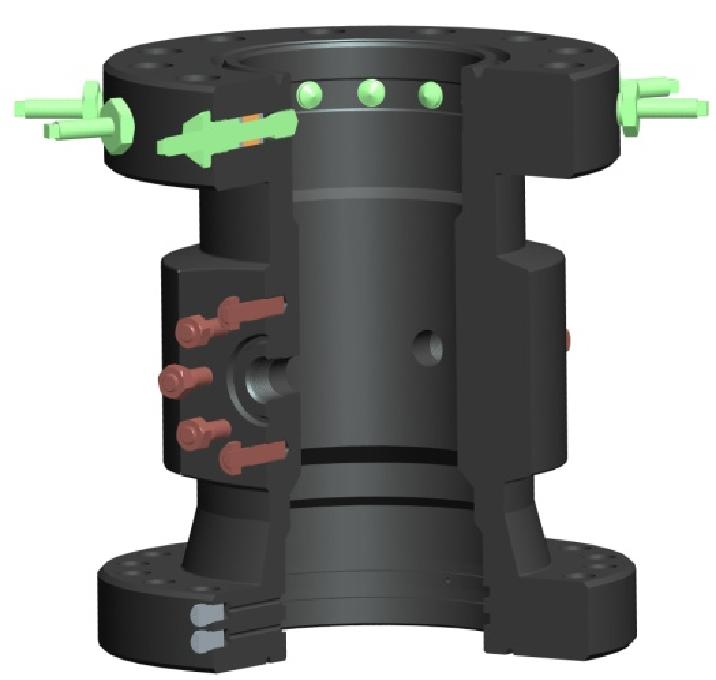

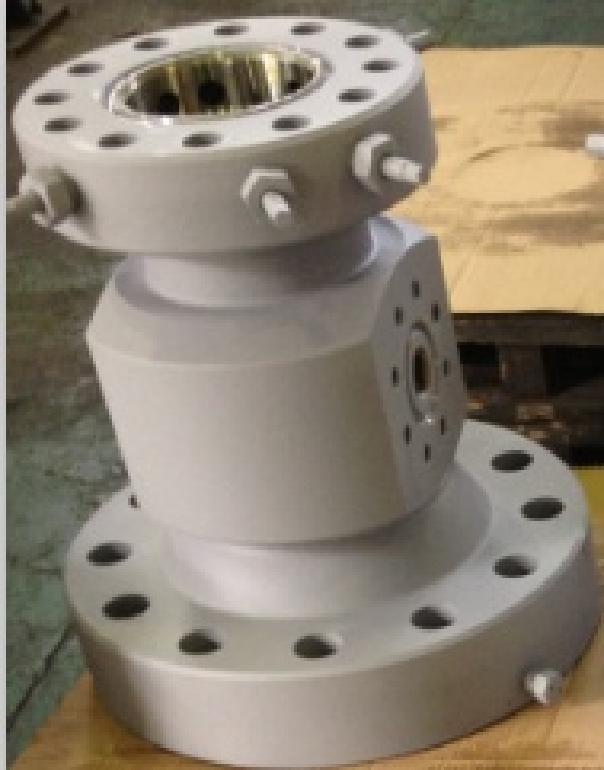

API 6A Casing Spool

Casing spool | 100% Cameron C-22/C-29  Compatibility | PSL 3/3G & PR2 Qualified

Executive Overview

Engineered for reliable casing/tubing suspension, annular pressure containment, and severe-service isolation, our API Spec 6A Wellhead Assemblies and Spools provide a field-proven foundation for onshore and offshore oil and gas wells. Covering Casing Heads, Tubing Heads, Casing Spools, Tubing Spools, and Hangers, this integrated system handles high axial loads, aggressive fluids, and intense pressure cycles across conventional completions, high-pressure shale fracturing, and deepwater production trees.

Designed with 100% dimensional and profile interchangeability for Cameron C-22/C-29 Casing Heads and TCM Tubing Heads, our equipment allows seamless field upgrades without line modifications. Featuring slip hangers rated for high-capacity loads up to 600,000 lbs, integrated control line feed-through ports (DHSV/ESP ready), and Cameron H-Type Back Pressure Valve (BPV) threads, our wellhead systems deliver complete operational control. Supported by included running tools, test plugs, and spare seal packages, a zero-quality-claim track record, and extensive deployment across the United States, Central Asia, and the Middle East, we deliver reliable pressure containment worldwide.

Technical Performance & Engineering Advantages

1. 100% Cameron Profile Interchangeability & Field Flexibility

  • Seamless Interchangeability: Bowl profiles and internal sealing dimensions are 100% compatible with Cameron C-22, C-29 Casing Heads, and TCM Tubing Heads, allowing operators to standardize inventory and drop replacement hangers or test plugs directly into existing wellhead bowls.

  • Complete Auxiliary Support: Every wellhead shipment can be equipped with complementary running tools, test plugs, and spare packoff seal kits to streamline field installation and pressure testing.

2. High-Capacity Suspension & Advanced Penetration Ports

  • 600,000 lbs Slip Hanger Capacity: Our C-22 and C-29 slip-type hangers feature high-capacity load ratings up to 600,000 lbs, ensuring safe casing suspension during deep drilling and heavy casing string deployment.

  • Control Line Pass-Through Ports: Tubing head top flanges feature pre-machined single or dual hydraulic control line pass-through ports, allowing seamless connection to Downhole Safety Valves (DHSV) or Electrical Submersible Pumps (ESP) without compromising flange seal integrity.

3. Positive Well Isolation via BPV Threads

  • Cameron H-Type BPV Profile: Tubing hanger bores feature internal Cameron H-Type Back Pressure Valve (BPV) threads (and Type Type B Two-Way Check Valves).

  • 100% Pressure Isolation: Installing the BPV into the hanger bore creates a temporary 100% metal-to-metal downhole pressure barrier, allowing safe installation or removal of the Christmas tree under full wellhead pressure without killing the well.

4. Severe Service Validation & PSL 3G / PR2 Compliance

  • API 6A PSL 3/3G & PR2 Qualified: Certified for high-consequence environments through PR2 dynamic thermal/pressure cycle testing and PSL 3G low- and high-pressure gas testing to ensure zero fugitive emissions.

  • Sour & Corrosive Service Ready: Fully compliant with NACE MR0175 / ISO 15156 for $H_2S$ and $CO_2$ service, with options for Inconel 625 (UNS N06625) CRA cladding on critical sealing ring grooves and bowl surfaces.

Technical Specifications Matrix

ParameterSpecification & Standard Options
Design StandardAPI Spec 6A (Latest Edition), NACE MR0175 / ISO 15156
Interchangeability100% Profile Compatible with Cameron C-22 / C-29 & TCM Series
Nominal Flange Sizes7-1/16″ through 13-5/8″ (API 6B / 6BX Flanged or Studded)
Working Pressures2,000 PSI, 3,000 PSI, 5,000 PSI, 10,000 PSI, 15,000 PSI
Hanger Load RatingUp to 600,000 lbs (High-Capacity Slip & Mandrel Hangers)
Downhole IntegrationSingle / Dual Control Line Pass-Through Ports (DHSV / ESP Ready)
Internal Hanger ThreadsCameron H-Type Back Pressure Valve (BPV) Threads
Product Specification LevelPSL 1, PSL 2, PSL 3, PSL 3G, PSL 4
Performance RequirementPR2 Qualified (Dynamic Cycle Tested)
Material ClassesAA, BB, CC, DD-NL, EE-1.5, FF-0.5, HH (CRA Cladded Option)
Temperature RatingsAPI 6A Classes K, L, P, R, S, T, U, V (-60°C to +121°C / -75°F to +250°F)

Global Supply Chain & Proven Field Track Record

  • Complete System Packages: Single-source procurement for Casing Heads, Tubing Heads, Spools, Hangers, Running Tools, and Test Plugs.

  • Proven US, Central Asia & Middle East Export Record: Extensively installed in shale completions across North America, deep wells in Central Asia, and high-pressure sour gas fields in the Middle East.

  • Zero Quality Claims Record: 100% factory hydro-tested, drift-tested, dimensional-checked, and gas-tested prior to release, guaranteeing zero-defect delivery.

Frequently Asked Questions

Q1: Are your Casing Heads and Tubing Heads compatible with Cameron C-22, C-29, and TCM equipment?

Answer: Yes. Our wellhead bowls, casing spools, tubing spools, and hangers are manufactured with 100% dimensional and profile interchangeability to Cameron C-22, C-29, and TCM standards. Hangers, test plugs, and running tools drop directly into existing Cameron wellhead bowls without modification.

Q2: Can the Back Pressure Valve (BPV) hold 100% downhole pressure during Christmas tree replacement?

Answer: Yes. The internal Cameron H-Type BPV thread inside the tubing hanger allows a Back Pressure Valve to be set directly into the hanger bore using a lubricator. Once set, the BPV provides a 100% pressure-tight downhole barrier, enabling maintenance crews to safely install, repair, or replace the Christmas tree while the well remains under pressure.

Q3: How do your tubing heads handle control lines for downhole safety valves (DHSV) or ESPs?

Answer: Our TCM-style tubing heads can be configured with single or dual hydraulic control line pass-through ports in the top flange. These ports connect to control line feed-through mandrels in the tubing hanger, allowing continuous hydraulic control for DHSVs or electrical penetrations for ESPs without compromising primary wellhead seal integrity.

Seeing the correct landing, setting, and pressure testing steps for casing hangers helps field crews complete safe wellhead installations.



C22 Casing Spool Specification

Top Flange Size (inches)

Working Pressure (psi)

Bottom Flange Size (inches)

Working Pressure (psi)

11"

2000

11"

2000

11"

2000

13-5/8"

3000

11"

3000

11"

3000

11"

3000

11"

2000

11"

3000

13-5/8"

2000

11"

3000

13-5/8"

3000

11"

3000

16-3/4"

2000

11"

3000

16-3/4"

3000

11"

5000

13-5/8"

3000

11"

5000

16-3/4"

3000

11"

10000

13-5/8"

5000

13-5/8"

3000

16-3/4"

3000

13-5/8"

3000

21-1/4"

2000

13-5/8"

5000

20-3/4"

3000

C29 Casing Spool Specification

Top Flange Size (inches)

Working Pressure (psi)

Bottom Flange Size (inches)

Working Pressure (psi)

11"

3000

11"

3,000

11"

3000

13-5/8"

3,000

11"

3000

16-3/4"

3,000

11"

5000

11"

3,000

11"

5000

13-5/8"

3,000

11"

5000

13-5/8"

5,000

11"

5000

16-3/4"

3000

11"

5000

16-3/4"

5,000

11"

10000

11"

10,000

11"

10000

13-5/8"

5,000

13-5/8"

3000

20-3/4"

3,000

13-5/8"

5000

20-3/4"

3,000
