Roller Cone | Steel-Body PDC | Matrix-Body PDC | PDC Coring | Diamond-Impregnated Bits
Full IADC Code Alignment | API Spec 7-1 Certified | -40°C Arctic Toughness Tested | Fast-Track 35–45 Day Delivery
From soft shales to extreme, highly abrasive HPHT hard-rock formations (UCS > 200 MPa), our comprehensive drilling and coring bit portfolio delivers optimized Rate of Penetration (ROP), dynamic stability, and high core recovery rates.
Manufactured in strict accordance with API Spec 7-1 and full IADC classification standards, our complete lineup—including Roller Cone, Steel-Body PDC, Matrix-Body PDC, PDC Coring, and Diamond-Impregnated Bits—provides 100% direct drop-in compatibility with standard API drill strings, high-speed downhole motors (PDMs), drilling turbines, and international core barrels (e.g., Christensen/Baker Hughes styles).
Rigorously Charpy V-Notch impact tested down to -40°C for arctic winter deployment, our bits feature premium tungsten carbide nozzles, anti-whirl cutter layouts, self-sharpening matrix formulations, and high-recovery core discharge designs. Backed by a fast-track 35–45 day guaranteed delivery, a 0-quality-claim track record, and full NACE MR0175 compliance, we ensure maximum cost-per-foot efficiency for global drilling contractors.

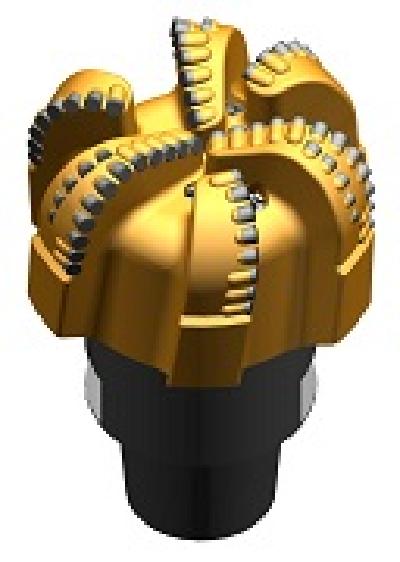

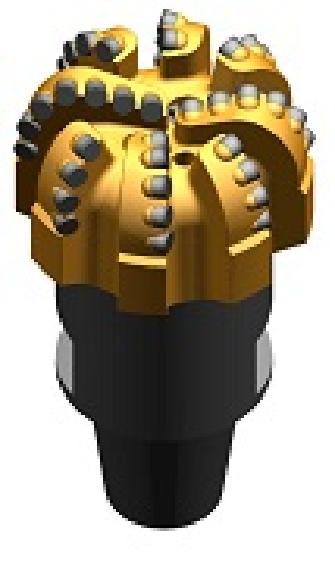

Steel-Body PDC Bits (High ROP & Cost-Effective Repairability): Precision-machined from high-strength alloy steel forgings. Features large junk slots for high flow-rate hydraulic cleaning in soft-to-medium formations. Highly repairable through field re-brazing and blade re-building to maximize total bit lifespan.

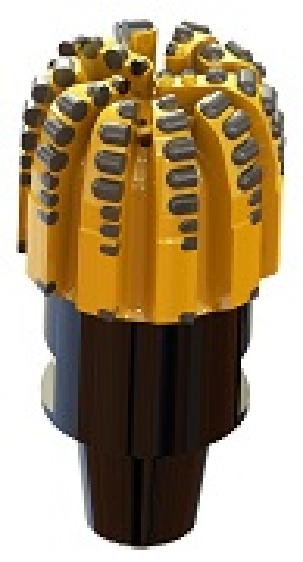

Matrix-Body PDC Bits (Anti-Erosion & HPHT Durability): Sintered tungsten carbide matrix construction engineered for abrasive sandstones, carbonates, and high-sand oil-base mud (OBM) environments. Provides maximum erosion resistance against fluid jetting and cutter pocket washout.
Vibration & Torque Control: Integrated with Depth of Cut Control (DOCC) technology and spiral blade geometries to mitigate stick-slip vibrations and bit whirl during transition drilling.

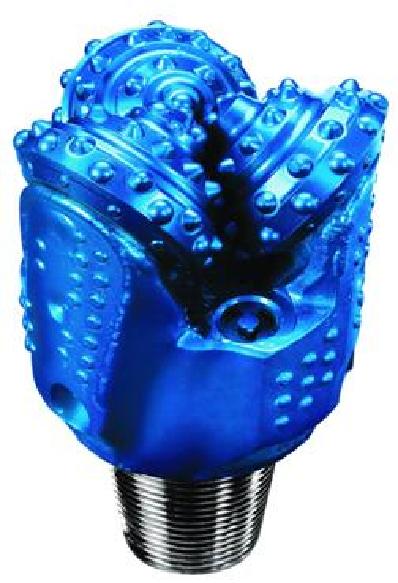

Full IADC Code Matching: Covers IADC Series 111 through 837 for soft, medium, hard, and abrasive formations.
Advanced Bearing & Seal Architecture: Features high-capacity silver-plated journal bearings and dual-elastomer radial seals to prevent bearing failure and eliminate drop-cone hazards under high Weight-on-Bit (WOB) loads.
Gauge & Shirt-Tail Armor: Hardfaced shirt-tails and tungsten carbide insert (TCI) gauge compacts maintain true hole diameter in directional and abrasive applications.
High Core Recovery : Specially engineered crown profiles and parabolic inner flow paths direct high-velocity drilling mud away from the core barrel entrance, protecting delicate core samples from fluid washout.
Universal Core Barrel Compatibility: Threaded and dimensioned for 100% direct makeup to standard 4″ x 2-5/8″, 5-3/4″ x 3-1/2″, and 6-3/4″ x 4″ international core barrel assemblies.
Self-Sharpening Matrix Technology: Formulated with synthetic diamond grit uniformly embedded in a wearing matrix. As the matrix micro-erodes during high-RPM drilling, fresh sharp diamond edges continuously expose for efficient micro-grinding.
Turbine & High-RPM PDM Match: Optimized for speeds from 300 to 800+ RPM in ultra-hard, abrasive formations (flint, quartzite, granite) where conventional cutters suffer impact destruction.
| Bit Type | Primary Cutting Mechanism | Target Formations & UCS | IADC & API Standards | Key Engineering Features |
| Steel-Body PDC | Continuous Shearing | Soft to Medium (Shale, Clay, Sandstone) | API Spec 7-1, IADC M-Series | High Junk Slot Area, Re-brazeable / 3x Repairable |
| Matrix-Body PDC | Continuous Shearing | Medium to Hard, Abrasive Sands/Carbonates | API Spec 7-1, IADC M-Series | Sintered TC Matrix, Maximum Washout Resistance |
| Roller Cone (TCI/MT) | Crushing & Chipping | Soft Clays (MT) to Hard Conglomerates (TCI) | API Spec 7-1, IADC 111 to 837 | Sealed Journal Bearings, Hardfaced Shirt-tails |
| PDC Coring Bits | Ring Shearing | Core Sampling in Reservoirs & Shales | API Spec 7-1, Core Standards | Anti-Washout Hydraulics, Core Recovery |
| Impregnated Bits | Micro-Grinding | Ultra-Hard, Abrasive (UCS > 200 MPa) | API Spec 7-1, Turbine Class | Self-Sharpening Matrix, High-RPM PDM Match |
Fast-Track 35–45 Day Guaranteed Delivery: Maintained inventories of steel forgings, matrix powders, premium PDC cutters, and bearing components ensure complete bit consignments dispatch within 35 to 45 days.
-40°C Arctic Toughness Validation: All steel-body shanks, matrix connection threads, and pin forgings undergo Charpy V-Notch impact testing down to -40°C, preventing brittle thread fracture during severe cold-weather operations in North America, Central Asia, and northern basins.
Complete Field Consumable Packages: Shipped complete with interchangeable tungsten carbide thread-in nozzles, nozzle installation wrenches, and custom bit breakers/handling plates for safe rig-floor makeup.
Export-Grade Logistics: Packaged in heavy-duty molded plastic containers or reinforced wooden crates with internal VCI anti-corrosion vacuum protection for international ocean and air freight.
Answer: Yes. All our drilling and coring bits are manufactured to API Spec 7-1 standards and fully mapped to standard IADC bit codes (including IADC Roller Cone 111–837 and IADC PDC classification codes). Pin connections drop directly into standard API drill collars, downhole motors, and core barrels.
Answer: Steel-Body PDC bits feature higher impact toughness and larger junk slot areas for high ROP in soft-to-medium formations, plus high repairability (re-brazing cutters). Matrix-Body PDC bits use a sintered tungsten carbide matrix that provides superior resistance to fluid erosion and abrasion in high-sand OBM muds and abrasive formations, though matrix bodies are harder to repair if structurally damaged.
Answer: Our PDC Coring bits incorporate dedicated internal bypass channels and face-discharge hydraulics that direct high-pressure mud away from the core entry throat, preventing fluid jetting from eroding soft or fractured cores and ensuring a core recovery rate of 95% or higher.
Answer: Diamond-Impregnated bits use a self-sharpening matrix containing synthetic diamond particles. Designed for high-RPM operation with turbines or downhole motors in ultra-hard rock (UCS > 200 MPa), the matrix micro-wears at a controlled rate to constantly expose sharp new diamond edges, eliminating cutter breakage.
Answer: Every shipment includes dedicated tungsten carbide nozzles, nozzle insertion wrenches, and custom bit breakers. We guarantee a fast-track 35–45 day delivery timeline across standard and custom sizes, protected by heavy-duty export VCI packaging.
Reviewing the step-by-step PDC bit inspection, nozzle sizing/installation, and bit breaker makeup procedures helps rig personnel optimize bit performance and prevent run failures.
