Downhole Tools Drilling Stabilizer Integral Spiral Stabilizer (Type LX) & Hydraulic Adjustable Stabilizer (Type YTLX)

Integral Spiral Stabilizer (Type LX) & Hydraulic Adjustable Stabilizer (Type YTLX)

  • PRICE-
  • CURRENCYUSD
  • BRAND
  • BLADE OD
  • CONENCTIOIN
  • OVER LENGTH
  • END OD OF BODY
  • ID
  • WORKING AREA LENGTH
  • 26 IN
  • 7 5/8 REG
  • 93 IN
  • 9 1/2 IIN
  • 3 1/2 IN
  • 20 IN
  • 17 1/2IN
  • 7 5/8 REG
  • 70 IN
  • 9 1/2 IN
  • 3 IN
  • 21 IN
  • 12 1/4 IN
  • 6 5/8IN
  • 65 IN
  • 8 IN
  • 2 13/16 IN
  • 20 IN
  • 9 5/8 IN
  • 4 1/2 IF
  • 60 IN
  • 6 1/2IN
  • 2 13/16IN
  • 16 IN
  • 8 1/2 IN
  • 4 1./2 IF
  • 60 IN
  • 6 1/2IN
  • 2 13/16 IN
  • 11 3/4 IN
  • 6 IN
  • 3 1/2IF
  • 60 IN
  • 4 1/8 IN
  • 2 IN
  • 11 3/4IN
  • Number of product packages
  • Shipping cycle
  • Price
  • Quantity
  •
  • 0
  • -
  • - +
    piece
  •
  • 0
  • -
  • - +
    piece
  •
  • 0
  • -
  • - +
    piece
  •
  • 0
  • -
  • - +
    piece
  •
  • 0
  • -
  • - +
    piece
  •
  • 0
  • -
  • - +
    piece
  • PRODUCT DESCRIPTION
TECHNICAL PARAMETERS
IMPLEMENTATION OF STANDARDS
PRODUCT DESCRIPTION

API Spec 7-1 Integral Spiral Stabilizer (Type LX) & Hydraulic Adjustable Stabilizer (Type YTLX)

API Spec 7-1 Monogrammed | Tungsten Carbide Tipped & Hardfaced Ribs | -40°C Arctic Toughness & High-Temperature Durability | Fast-Track Global Delivery to Central Asia & the Middle East

Executive Overview

Engineered for precision BHA trajectory control, superior wellbore stabilization, and optimal fluid circulation in demanding vertical, directional, and horizontal wells, our premium downhole stabilizer portfolio—featuring the Integral Spiral Stabilizer Type LX (Drill String & Near-Bit models) and the Hydraulic Adjustable Stabilizer Type YTLX—delivers uncompromised durability and performance under harsh operating conditions.

Manufactured from vacuum-degassed, fully heat-treated AISI 4145H Modified alloy steel (with non-magnetic options available for MWD/LWD proximity), our stabilizers are precision-machined to strict API Spec 7-1 standards. The Type LX features high-hardness, high-toughness tungsten carbide welded onto its spiral rib belts for maximum wear resistance, while the Type YTLX utilizes advanced hydraulic-mechanical pressure activation to dynamically adjust its outer diameter downhole, making it ideal for borehole enlargement and complex well profiles.

Backed by full mill test traceability, UT/MT non-destructive inspection, and a guaranteed 35–45 day fast-track delivery, we supply high-reliability BHA solutions to drilling contractors and oilfield operators across Central Asia, the Middle East, North America, and worldwide basins.

Product Type & Engineering Specifications

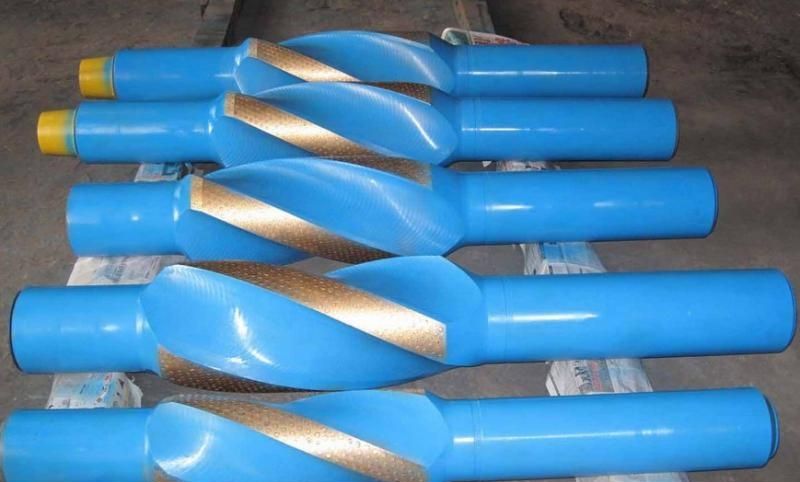

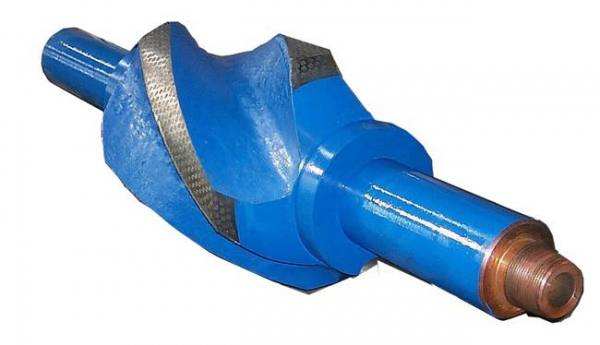

1. Integral Spiral Stabilizer Type LX (Drill String & Near-Bit Models)

  • Design & Configurations: Divided into Drill String models (longer body for mid-string stabilization) and Near-Bit models (shorter body positioned immediately above the drill bit).

  • Carbide Dressing: Spiral rib belts are heavily dressed with high-hardness, shock-resistant welded tungsten carbide, ensuring exceptional gauge retention and abrasion resistance in abrasive formations.

  • Comprehensive Size Range: Manufactured from size LX152 (for 6″ bits) up to LX660 (for 26″ bits) with standard API rotary connections (NC38, NC50, 6-5/8 REG, 7-5/8 REG).

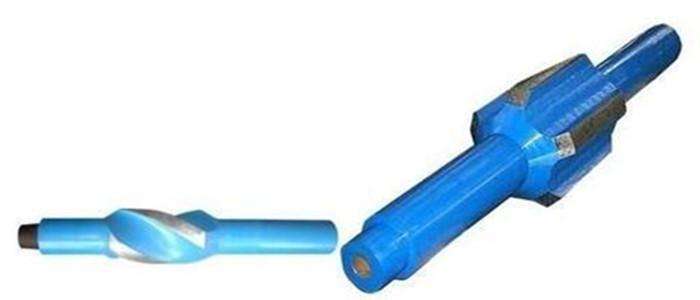

2. Hydraulic Adjustable Stabilizer Type YTLX (Variable-Diameter Series)

  • Design & Operation: An advanced downhole adjustable stabilizer that utilizes drilling fluid pressure (up to 30 MPa) to push out internal pistons, achieving dynamic diameter adjustment downhole.

  • Automatic Retraction: When pulling out of hole (POOH) or lifting drilling tools, the pistons retract automatically to completely prevent ledging, sticking, or jamming.

  • Applications: Specifically engineered for directional drilling, horizontal drilling, and hole-expansion operations where variable sizing and reduced trip frequency are critical. Operating temperature endurance up to <120°C.

Technical Performance & Engineering Advantages

1. Superior Gauge Retention & Wear Life (Type LX)

  • High-Hardness Carbide Ribs: Specialized tungsten carbide overlay welding delivers exceptional toughness and impact resistance, protecting the stabilizer body from premature wall wear in hard, abrasive sandstones and limestones.

  • Optimized Fluid Bypass: Precision spiral geometry promotes efficient mud circulation and rapid cuttings evacuation, preventing bit balling and excessive annular pressure surges.

2. Dynamic Downhole Adjustment & Anti-Jamming (Type YTLX)

  • Drilling Pressure Actuation: Harnesses downhole mud pump pressure to reliably expand the cutting/stabilizing diameter, enabling simultaneous hole opening and stabilizing in complex intervals.

  • Fail-Safe Retrieval: Automatic piston retraction upon string uplift eliminates the risk of getting stuck while tripping out of restrictive or swelling shales.

3. Extreme Climate & Regional Field Readiness

  • -40°C Arctic Toughness: Fully heat-treated alloy steel bodies achieve high Charpy V-Notch impact values to prevent brittle fracture during sub-zero winter drilling in Central Asia.

  • Sour Service & High Temp Compatibility: Engineered to withstand aggressive downhole conditions across Middle Eastern carbonate reservoirs and high-temperature wells.

Technical Specifications

Stabilizer ModelSeries TypeSize / O.D. RangeConnection Standard (API)Key Operating ParametersPrimary Field Application

Type LX (Integral Spiral)

Drill String & Near-Bit

152 mm to 660 mm (6″ to 26″ Bits)

NC38, NC50, 6-5/8 REG, 7-5/8 REG

Effective stable length: 400–600 mm

Standard vertical, deep, and directional wells

Type YTLX (Hydraulic Adjustable)

Variable-Diameter Piston

O.D. 178 mm & 203 mm

NC50, 6-5/8 REG

System Pressure: 30 MPa;


Temp: <120°C

Directional, horizontal, and hole-expansion wells


Hole size   Range (in)

DC diameter   Range (in)

Wall contact   (in)

Overall   length (in)

Blade width   (in)

Fishing neck   length (in)

Standard   under size of blade diameters

Approx.   weight (kg)


String

Near Bit



6 1/8-6 3/4

4 1/8-4 3/4

12

53

50

23/16

20

1/32'

150


7 3/8-77/8

5 3/4-6 1/4

15

54

51

23/8

20

1/16'

280


8 1/2-8 3/4

6 l/4-7

15

60

56

23/8

22

1/16'

270


9 1/2-9 7/8

7-8

15

62

58

23/8

22

1/16'

280


10 5/8-11

7-8

16

66

62

31/8

24

1/16'

520


12-12 1/4

7 3/4-9 1/2

16

70

66

4

25

1/16'

580


14 3/4-15

8-10

16

74

70

4

25

3/16'

860


17 3/8-17   1/2

8-10

19

83

78

4

27

3/16'

980


22-23

9-11

20

90

85

5

27

3/16'

1650


24-26

9-11

20

93

88

5

27

3/16'

1 800


Drilling Stabilizer.pdf

Quality Assurance & Compliance Documentation

Every stabilizer shipment is delivered with a comprehensive export compliance package:

  • API Spec 7-1 Monogrammed Certificate: Official quality compliance ensuring precise thread dimensions, body straightness, and mechanical integrity.

  • Full MTR (Material Test Reports): Chemical composition and mechanical property mill test traceabilities per EN 10204 3.1.

  • UT & MT Non-Destructive Inspection Reports: Ultrasonic and magnetic particle examination records verifying zero internal inclusions, fatigue cracks, or surface anomalies.

  • Export-Grade Protection: Fitted with heavy-duty steel thread protectors, coated with VCI rust inhibitors, and packed in reinforced export-grade wooden crates for secure ocean and overland freight.

Frequently Asked Questions

Q1: What is the operational difference between the Type LX Integral Spiral Stabilizer and the Type YTLX Hydraulic Adjustable Stabilizer?

Answer: The Type LX is a rugged, one-piece forged stabilizer featuring fixed spiral ribs welded with high-hardness tungsten carbide, designed for reliable gauge control in standard and directional wells. The Type YTLX is an advanced hydraulic tool that uses drilling pressure (up to 30 MPa) to dynamically expand its diameter downhole and automatically retracts during pulling, making it ideal for hole-enlargement and complex horizontal drilling.

Q2: How does the Type YTLX prevent getting stuck when pulling out of the hole (POOH)?

Answer: The Type YTLX is engineered with a self-retracting piston mechanism. When the drilling pressure drops and upward pulling force is applied during tripping, the pistons automatically retract into the body, eliminating ledging and preventing the tool from hanging up or jamming in the wellbore[cite: 14].

Q3: Can the Type LX stabilizer be ordered in both drill string and near-bit configurations?

Answer: Yes. The Type LX series is fully available in both Drill String models (longer bodies designed for mid-string stabilization) and Near-Bit models (shorter bodies designed to run directly above the drill bit) with customized API connections[cite: 13].

Q4: What is the standard lead time for export orders destined for Central Asia and the Middle East?

Answer: We maintain robust bar stock inventories and dedicated CNC machining lines, allowing us to guarantee a fast-track 35–45 day delivery timeline for standard and custom-configured stabilizer orders.
